Current Sensor AC/DC 50 Amp/100 Amp/1000 Amp To 2000 Amp

0 reviews • Write a review

from

$74.18

Ex Tax: $74.18

Stock: In Stock
Model: RDDLZ-CUS-ACDC2000S
Weight: 1.00
SKU: RDDLZ-CUS-ACDC2000S

Available Options

Short Description

Output Signal

Hole Diameter Selection

Measuring Range (for 20.5*10.5mm)

Measuring Range (for 43*13mm)

Measuring Range (for 52*15mm)

Measuring Range (for 52*32mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

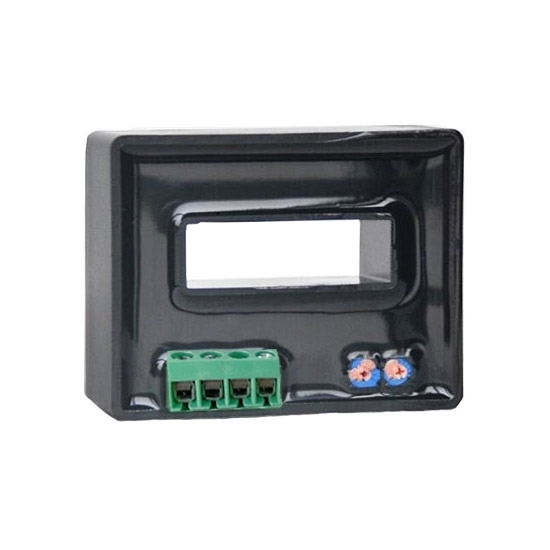

Hall effect current sensor has measuring range of AC/DC 50A/100A/200A/300A/400A/500A/600A/800A/1000A/1200A/1500A to 2000A.

Specification:

Model	RDDLZ-AHKC-BS	RDDLZ-AHKC-F	RDDLZ-AHKC-FA	RDDLZ-AHKC-HAT
Shipping weight	1kg
Hole size *	20.5*10.5mm	43*13mm	52*15mm	52*32mm
Measuring range of input current *	AC/DC 0-50A ~ 0-500A	AC/DC 0-200A ~ 0-1000A	AC/DC 0-200A ~ 0-1500A	AC/DC 0-400A ~ 0-2000A
Output signal *	0-4VDC, 0-5VDC
Zero offset voltage	±20mV
Offset voltage drift	≤±1.0mV/℃
Linearity	≤0.2%FS
Power supply	±15VDC
Accuracy	1.0%F.S.
Bandwidth	0~20kHz
Response time	≤5us
Withstand voltage	AC 2500V (between input, output and power supply)
Work temperature	-25~+70℃
Storage temperature	-40~+85℃
Humidity	≤95%RH (no dew formation, no corrosive gas)
Elevation	≤3500m
Measuring method	Through-hole type
Installation	Screw fixation

AC/DC current sensor 50 amp to 2000 amp dimensional diagram:

Model	Dimension (mm)
Model	W	H	D	a	e	M (Mounting)	N (Mounting)
RDDLZ-AHKC-BS	43	32.5	19	20.5	10.5	-	-
RDDLZ-AHKC-F	74	57	22	43	13	-	22
RDDLZ-AHKC-FA	94	60.5	26.5	52	15	83	28
RDDLZ-AHKC-HAT	94	76.5	24	52.5	32	83	28

AC/DC current sensor 50 amp to 2000 amp wiring diagram:

Details

Tips: What is the difference between Hall current sensor, current transformer and shunt?
The shunt is an exact resistor that can pass through a large current, and when the current flows through the shunt, a microvolt-level voltage appears at both ends of it, and the microvolt-level is used to measure the voltage, and then the voltage is converted into an electric current. The measurement of the high current is completed. The shunt is very simple, can only measure DC, do not need power supply, output signal is DC 0-75mV, it is simply a resistor.
Current transformer is the proportional transformation of high currents into standard small currents (5A or 1 A) using for standardization and miniaturization based on measuring instruments, protective equipment and automatic control equipment. At the same time, current transformers can also be used to separate high current systems to ensure the safety of people and equipment. Current transformer is based on the principle of mutual inductance that can only detect the current in 50Hz power frequency, do not need the power supply, the output signal is generally AC 1A, AC 5A.
Current sensor is based on Hall principle, which is divided into open-loop and closed-loop. It can measure AC, DC, high frequency, harmonic and other currents can be measured, it need to connect external power supply. The output signal can be 4-20mA, 0-20mA, 0-5V, and 0-10V and so on.
