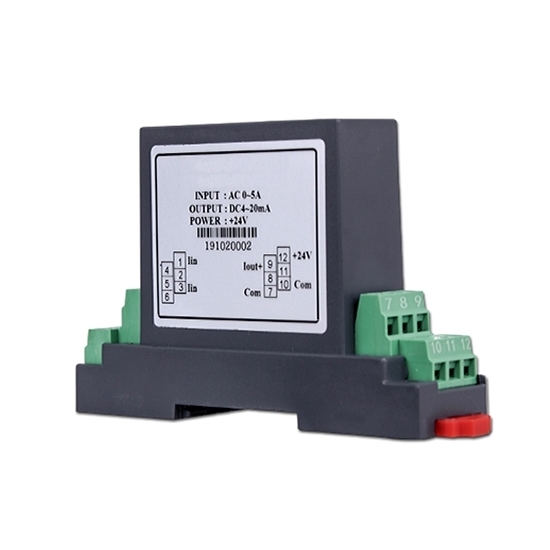

Current Sensor AC/DC 0.1mA/1mA/5mA/10mA/20mA/50mA/0.2A/0.5A/1A To 5A

0 reviews • Write a review

from

$126.37

Ex Tax: $126.37

Stock: In Stock
Model: RDDLZ-CUS-ACDC5
Weight: 1.00
SKU: RDDLZ-CUS-ACDC5

Available Options

Short Description

Output Signal

Measuring Range

Input Current

Power Supply for 0-10V

Power Supply for 0-20mA

Power Supply for 0-5V

Power Supply for 4-20mA

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC current sensor has measuring range of 1mA/5mA/10mA/20mA/50mA/75mA/100mA/0.2A/0.5/1A/2A to 5A.

Specification:

Model	RDDLZ-WBI122S01	RDDLZ-WBI124S01
Shipping weight	1kg
Measuring range of input current *	AC/DC 0-1mA ~ 0-5A (Please make sure the current type is DC or AC before model selection for factory calibration)
Allowed input over-current	10times of nominal input current, 1s in duration, interval time 300s, repeat five times
Linear measurement range	0% ~ 120% measuring range
Frequency range	±DC/20Hz ~ 10kHz
Input impedance	Ri=50mV/Ix (Ix is the current to be measured.)
Output signal *	DC 0-5V, 0-10V	DC 4-20mA, 0-20mA
Power supply *	DC 24V, DC 12V
Accuracy	0.5%F.S.
Load capacity	5mA	6V
Response time	≤250ms
Temperature drift	250*10^-6/℃	300*10^-6/℃
Quiescent current	≤34mA	≤34mA (0-20mA output), ≤38mA (4-20mA output)
Isolation features	Isolation between input and output, output terminals provides power supply
Isolation voltage	DC 1.5kV, 1min
Work temperature	0~+50℃
Storage temperature	-25~+70℃
Protection class	IP20
Mean time between failures	＞50000h
Housing material	Fire-retardant ABS
Wiring	Terminal connection
Installation	DIN rail (NS35/7.5, NS35/15, EN50022), or screw (M3) fixation

Current sensor AC/DC 0.1mA/20mA/50mA to 5A dimensional drawing (unit: mm):

Current sensor AC/DC 0.1mA to 5A wiring diagram:

0-5V/0-10V output:
4-20mA/0-20mA output:

Details

Tips: Characteristics of Hall current sensor with 4-20mA/0-20mA output signal
The use of current sensor with 0-5V output signal is limited when the signal needs to be transmitted remotely or the power grid interferes in the environment. It's because of the disadvantages of poor anti-jamming ability. While the current sensor with current output signal has been widely used for its high anti-interference ability.
The output range of the current output Hall current sensor is often 0~20Ma and 4~20Ma, and when the sensor outputs the minimum current and the maximum current, they are respectively represented the minimum and maximum rated output values calibrated by the sensor .
For the Hall current sensor with output 0~20Ma, we only need to select the appropriate buck resistance in the circuit design, it is suitable to convert the voltage on the resistor to digital signal through A/D converter directly, circuit debugging and data processing are relatively simple.
For the Hall current sensor with output 4~20Ma, the circuit debugging and data processing are more cumbersome. But the current sensor is capable of detecting wheather the current is in the normal range when the sensor is no signal, and to judge whether the circuit is faulty or not, so it is more commonly used.
