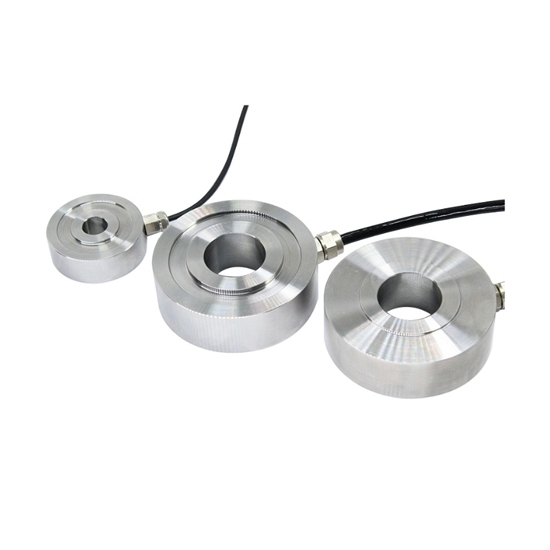

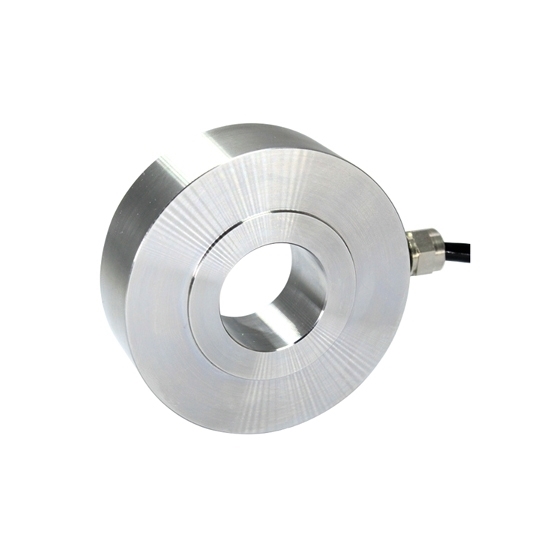

Compression Force Sensor, Ring Type, 0.5kN-200kN

0 reviews • Write a review

from

$193.99

Ex Tax: $193.99

Stock: In Stock
Model: RDDLZ-FS-HX004
Weight: 1.00
SKU: RDDLZ-FS-HX004

Available Options

Capacity

With Transmitter

With Display Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

The compression force sensor has a capacity range of 0.5-200kN, with optional capacities from 0.5kN to 200kN. It features a sensitivity of 1.0 ± 10% mV/V, zero output of ±2%F.S., and high accuracy with 0.3%F.S. non-linearity and hysteresis. With its hollow design, it is ideal for measuring extrusion force, assembly interference, and other industrial force control applications.

Specification

Model	RDDLZ-DYHX-004
Capacity	0.5-200kN (optional 0.5/1/2/5/10/20/50/100/200kN)
Matched Transmitter	RDDLZ-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	RDDLZ-DPM-DY800 (Click it to the controller page)
Output Sensitivity	1.0 +10% mV/V
Zero Output	±2%F.S.
Non-linearity	0.3%F.S.
Hysteresis	0.3%F.S.
Repeatability	0.1%F.S.
Creep (30 min)	0.1%F.S.
Temperature Effect on Output	0.1%F.S./10°C
Temperature Effect on Zero	0.1%F.S./10°C
Material	Stainless Steel
Impedance	700Ω
Insulation	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20 to 80°C
Safety Overload	120%
Maximum Overload	200%
Cable Specifications	Φ5×3m

Feature

Material: Made from high-quality stainless steel, ensuring durability and resistance to corrosion.
Sealed Design: Compression force sensor has tight welding and sealing for oil-proof, water-proof, and corrosion-resistant properties, making it suitable for harsh environments.
High Strength: The use of premium stainless steel ensures excellent machine resistance, good heat dissipation, and a longer service life.
Wide Range of Applications: Primarily used for measuring compressive force in hollow designs, such as pressure detection and control for various industrial forces.
Versatile Measurement: Ideal for applications in extrusion force measurement, assembly interference detection, and other industrial force control systems.
Customization Options: Available in a wide range of capacities from 0.5KN to 200KN, with customizable diameters (4-16mm or 7-30mm).

Dimension (unit: mm)

Capacity (kN)	0.5	1	2	5	10	20
Diameter (mm)	4-16 (Customizable)

Capacity (kN)	10	20	50	100	200
Diameter (mm)	7-30 (Customizable)

Force Mode

Wiring Method

Installation Case

Tips: What are the advantages of using a ring-type sensor over other designs?

The ring-type compression force sensor offers unique advantages, particularly in applications where the force needs to be applied in a circular or cylindrical manner. One of the main benefits is its ability to be installed around cylindrical objects, making it ideal for measuring forces on shafts, pipes, or other circular components. This design also minimizes the need for additional mechanical attachments and provides a more uniform distribution of force across the sensor. Additionally, ring-type sensors are often easier to integrate into systems where space is limited or where the force measurement needs to be taken at a specific point around the object.
