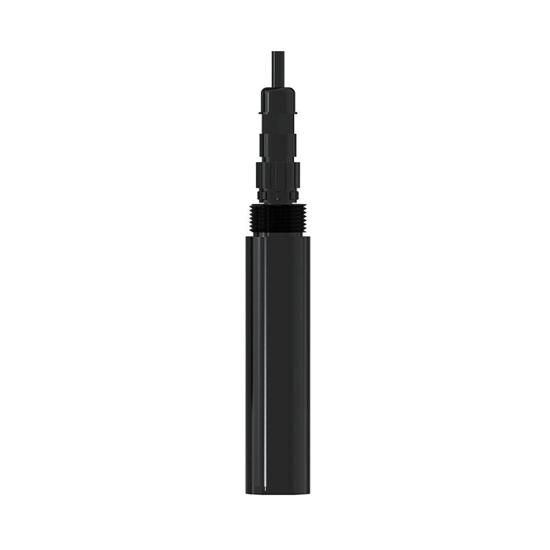

Chlorophyll Sensor For Water Quality, 0~400ug/L

0 reviews • Write a review

from

$871.35

Ex Tax: $871.35

Stock: In Stock
Model: RDDLZ-WQS-RSCH
Weight: 1.00
SKU: RDDLZ-WQS-RSCH

Available Options

Short Description

Self-cleaning

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The RS485 chlorophyll sensor, measuring 0~400 µg/L, uses fluorescence for accurate detection with ±5% FS error. It has 0.1 µg/L resolution, a 30-second response time, and runs on DC 7~30V. With an IP68 rating and RS485 ModBus-RTU interface, it's ideal for water quality monitoring in rivers, lakes, ponds, and aquaculture.

Specification

Model	RDDLZ-RS-CH-N01-2
Measurement Range	0~400 μg/L; 0~100 RFU
Measurement Error	±5% FS (25°C); ±0.5°C
Resolution	0.1 μg/L; 0.1 RFU; Temperature: 0.1°C
Response Time	≤30 sec
Working Conditions	0~40°C
Power Supply	DC 7~30V
Power Consumption	0.4W
Communication Interface	RS485; Standard ModBus-RTU protocol; Communication Baud Rate: Default 4800 (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 configurable)
Measurement Principle	Fluorescence Method
Waterproof Rating	IP68
Cable Length	Default 5m
Exterior Material	Corrosion-resistant plastic
Weight	0.15kg

Feature

High Sensitivity and Stability: Delivers accurate, reliable measurements with strong resistance to external interference.
Long-lasting and Durable: Designed for a long lifespan with minimal wear, suitable for continuous use in challenging environments.
Quick Response Time: Enables real-time monitoring with rapid detection capabilities.

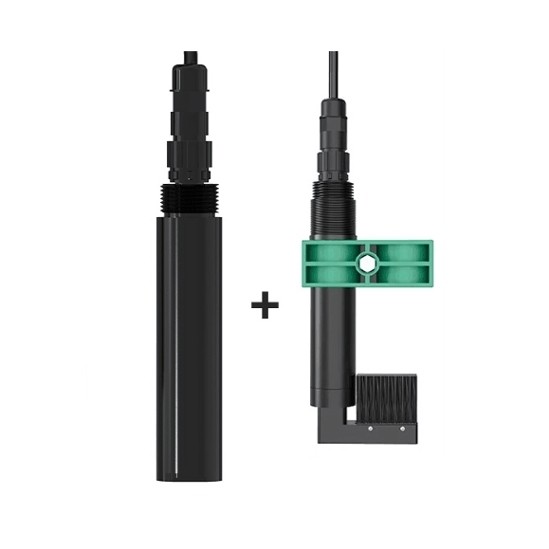

Self-cleaning Function: Equipped with an integrated self-cleaning brush to maintain accuracy and reduce maintenance.
Smart Temperature Compensation: Automatically adjusts for temperature changes, enhancing measurement precision.
IP68 Waterproof Rating: Withstands underwater use up to 20 meters, thanks to a corrosion-resistant exterior.
Easy Installation: Features 3/4 NPT threading for convenient and secure setup.

Detail

Size (Unit: mm)

Wiring Instructions

Function	Wire Color	Description
Power	Brown	Power Positive (10~30VDC)
Communication	Black	Power Negative
	Yellow	485-A
	Blue	485-B

Application

Applications include research, surveys and testing of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.

Tips: How does the fluorescence detection method work in the RS485 Chlorophyll Sensor?

The RS485 Chlorophyll Sensor utilizes fluorescence detection, a method that measures chlorophyll by detecting the light emitted by chlorophyll molecules when excited by a specific wavelength. Chlorophyll fluoresces under blue or UV light, and this emitted light is captured and quantified by the sensor. This non-invasive method provides high sensitivity, allowing the sensor to detect even low concentrations of chlorophyll in water. The fluorescence method is preferred for chlorophyll measurements as it avoids chemical reagents, minimizes environmental impact, and maintains accuracy over a range of conditions.
