Air Quality Monitor, CO/ CO2/ Temperature/ Humidity
from
$156.54
Ex Tax: $156.54
- Stock: In Stock
- Model: RDDLZ-AIR-PT04
- Weight: 1.00
- SKU: RDDLZ-AIR-PT04
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

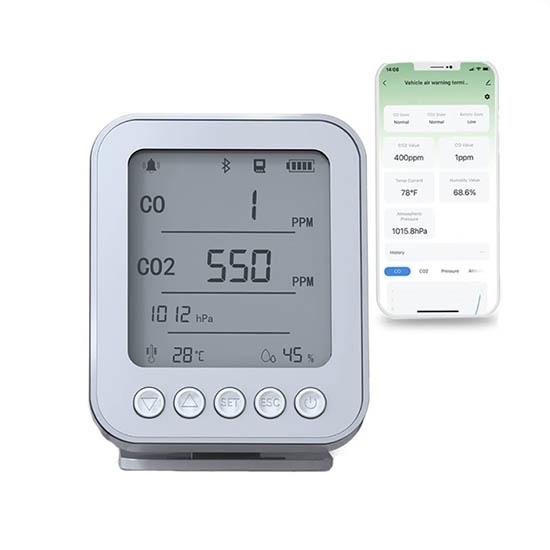

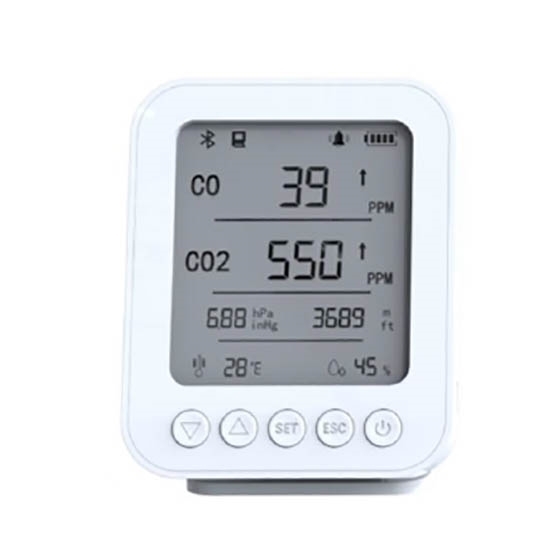

Air quality sensor voltmeter achieves real-time monitoring, long-term alarm for exceeding the standard, and protects life safety, monitoring carbon monoxide, carbon dioxide, temperature, humidity, voltage. Appearance color can be customized.
Specification
Product Model | RDDLZ-PT04 |
Color | White |
CO2 Measurement Range | 400-5000 ppm |
Resolution | 1 ppm |
CO2 Measurement Accuracy | ± 50 ppm or ± 5% of reading |
CO Measurement Range | 0-1000 ppm |
CO Measurement Accuracy | ± 10 ppm or ± 5% of reading |
Temperature Measurement Range | -10°C~60℃, ± 2°C |
Humidity Measurement Range | 5%~95%, ± 5% |
Pressure Range | 300-1100 hPa |
Relative Accuracy ( 950-1050hPa@ 25℃) | ± 0.12 hPa |
Absolute Accuracy (950-1050hPa@0-40℃) | ± 1 hPa |
Altitude | 9000-500m (Above/Below sea level) |
Sound Level | 85 dB (3M) |
Working Temperature | 0°C-50℃ |
Working Humidity | 0-95% (non-condensing) |
Power | Type C USB 5V 1A |
Dimension | 110*90*38 mm |
Weight | 0.65 (kg) |
Details
Feature
- Air quality sensor with accurate CO, CO2 concentration detection and advanced NDIR infrared sensor.
- Wifi remote connection, stable data transmission, with CO and CO2 exceeding the standard display.
- When the safety value is exceeded (CO is 25ppm, CO2 is 1000ppm), the screen displays an alarm and gives a warning to remind the car-driver to open the window for ventilation.
- Indoor air quality monitor High altitude exploration, long service life more than five years.
- Carbon monoxide and carbon dioxide are monitored in real-time as well as temperature and humidity display and shockproof function.
- Air quality tester having display of pressure and altitude values. Prevent heatstroke and fainting during long-distance driving.
- Portable air quality monitor with small size and light weight, easy to install and carry outdoors.
Notice
- If you need an air quality tester with other measuring ranges unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.
- We also provide other air quality sensors that detect CO, CO2, voltage, temperature and humidity. If you have any questions, please feel free to contact us.
Tips: Why should we apply a CO and CO2 air quality monitor?
- Air quality sensor’ NDIR is used to monitor CO, CO2, temperature, humidity, pressure and altitude in the vehicle.
- Air quality tester provides effective technical support for the monitoring, early warning and regulation of the air in various types of vehicles, which can detect the crisis in time and provide safe driving guarantee for the vehicle users.
- Achieving real-time monitoring, long-term alarm for exceeding the standard, and protects life safety.
