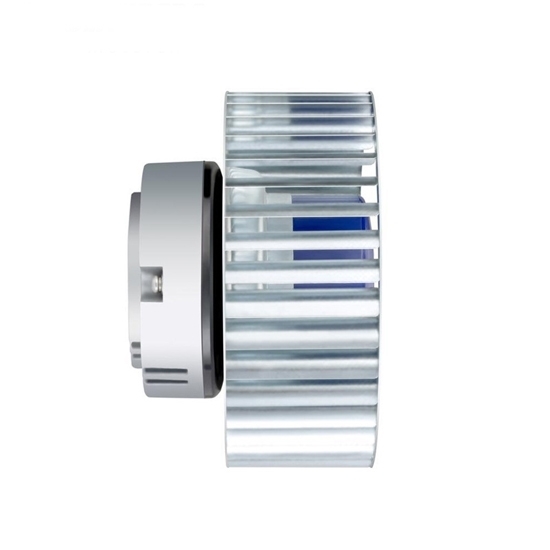

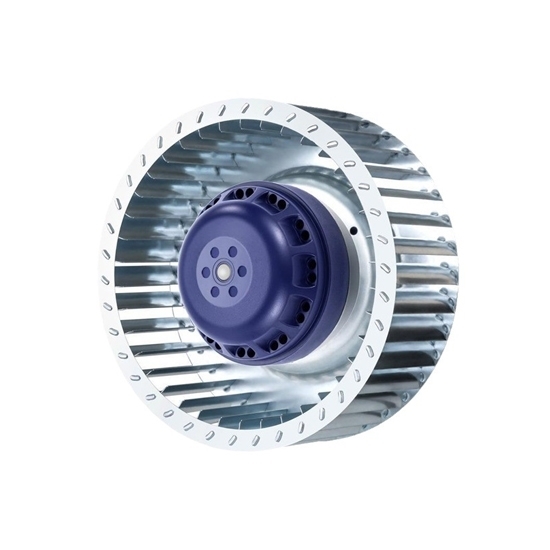

AC Forward Curved Centrifugal Fan, 160mm, 230V

0 reviews • Write a review

from

$444.09

Ex Tax: $444.09

Stock: In Stock
Model: RDDLZ-FCCF-AC160
Weight: 1.00
SKU: RDDLZ-FCCF-AC160

Available Options

Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ forward curved centrifugal fan with 160mm impeller features a wheel with numerous small blades that curve forward in the direction of rotation. Its design aids in maintaining lower noise levels, making it suitable for both commercial and residential applications.

Specification

Model	RDDLZ-BL-F160A-4E-B01-01
Operating Voltage	230V AC
Frequency	50Hz	60Hz
Max. Power	79W	90W
Motor Power	79W	90W
Max. Current	0.35A	0.39A
Noise	66dB(A)	68dB(A)
Speed	1400rpm	1540rpm
Performance Curve	Ⅰ	Ⅱ
Impeller Diameter	160mm
Air Volume	510m³/h (300 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Galvanized Sheet
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protector Automatically Reset
Performance	Low Noise Fan
Protection Level	IP44
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Detail

Tips: What is an AC forward curved centrifugal fan?

An AC forward curved centrifugal fan is a type of fan used in various industrial and HVAC applications. It features a rotor with blades that curve forward in the direction of rotation, which helps to increase airflow efficiency. Powered by an alternating current (AC) motor, this fan design is known for its compact size and high air volume output relative to its size. The forward curved blades are particularly effective in delivering a high volume of air at low to moderate static pressures. This makes them ideal for applications such as air handling units, ventilation systems, and small-scale cooling systems. They are often used in situations where space is limited and quiet operation is important. However, they are less effective in high-pressure applications compared to backward inclined fans.
