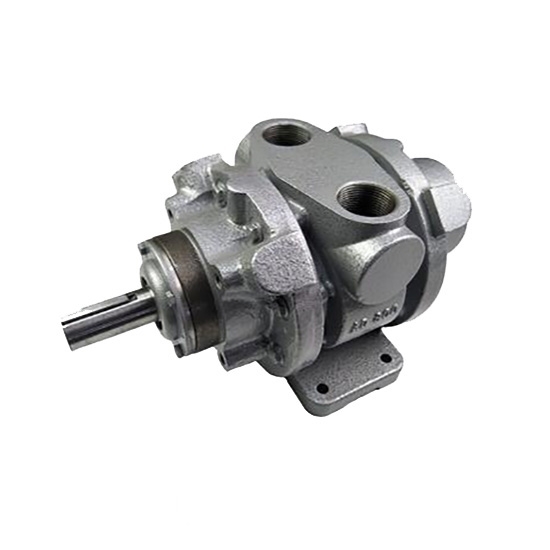

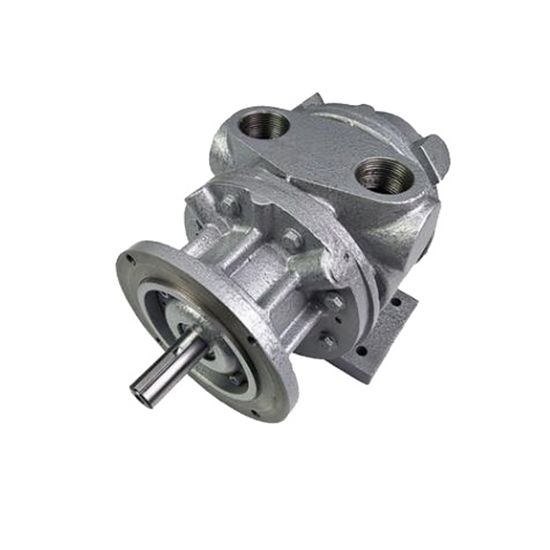

Factory price pneumatic vane air motor for sales, with rated power 9.5hp/ 7kW, rotate speed 200rpm, 290 lb.in rated torque. It is widely used as power in mine rock driling or loading machinery and more popular in manyfields, e.g. ship, offshore platform, metallurgy, papermaking and petrochemical industries, etc.

Specification

Dimension (unit=inch/mm)

Details

Tips: Features of Pneumatic Vane Air Motor.
• Adjustable speed
Using a simple ball valve or pressure reducing valve placed between the air source and the air motor can adjust the air motor speed from 300 RPM to 10,000 RPM (depending on the selected model).
• No sparks
Since it is not an electrical device, the possibility of causing an explosion by igniting flammable gas is very low, and it is suitable for use in flammable and explosive fields. The explosion-proof grade is higher than that of explosion-proof motors.
• Instant reversal
The use of two-position five-way solenoid valve can make the air motor change the direction of rotation instantaneously, even when it is running at high speed.
• Self-cooling
When the air motor is running, the expanding air cools the air motor. It can work at an ambient temperature of 120 °C.
• No need for excessive maintenance
You can use the air motor in some places where you can't get too much maintenance. Because GANGONG air motors basically have no parts that need maintenance. Only need to provide clean, dry and adequately lubricated air source for the air motor.
• Will not burn out
Motors are often burnt due to stalling, and air motors will not be damaged if they are stalled or loaded for a long time.
• Flexible installation
There are a variety of installation methods to choose from, including foot, shaft, and end surface installation.
