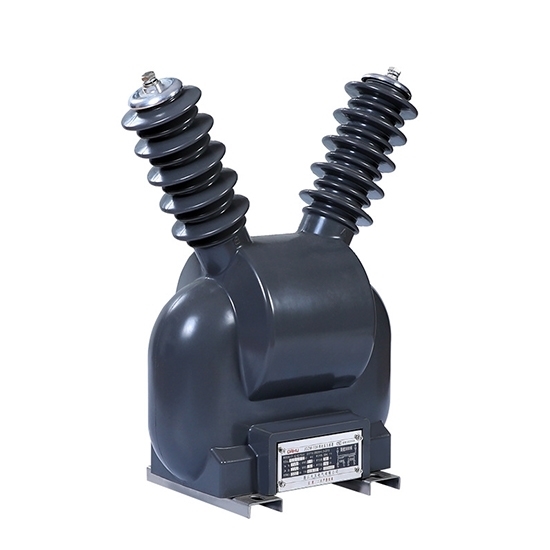

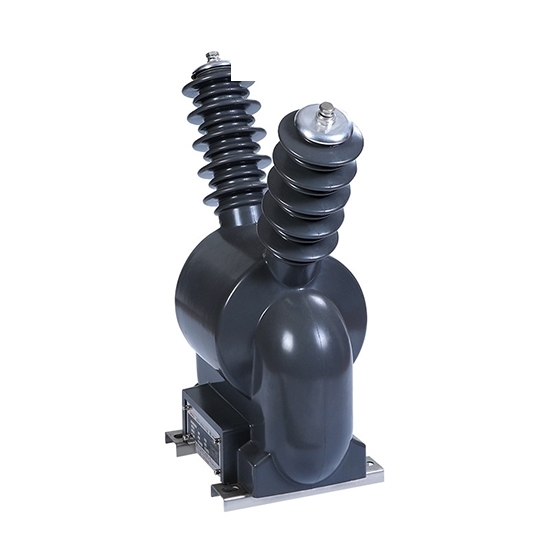

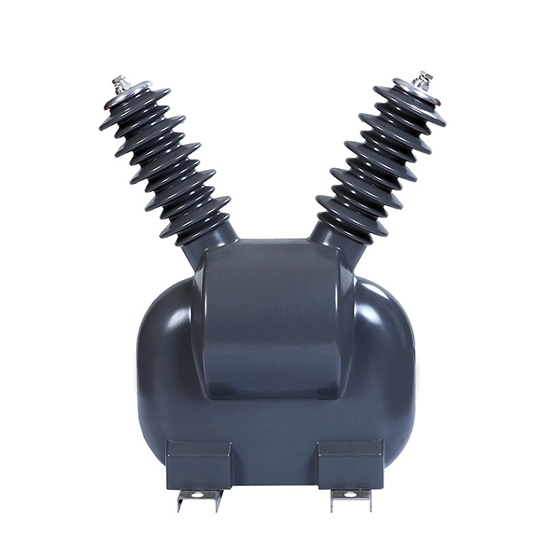

The 12kV single phase potential transformer we offer is a high precision, safe and reliable power measurement device. The voltage transformer can accurately measure 12kV single phase voltage, providing stable and reliable measurement results. Reliable insulation ensures the safety of personnel and equipment.

Specification

Wiring Diagram

Overall Dimension Drawing(unit:mm)

Features

• High precision: Voltage transformers have high output precision and good linearity, which can meet the requirements of highly accurate measurement.

• Good isolation performance: Potential transformers can effectively protect the test instrument and electrical equipment, to ensure electrical safety.

• Strong adaptability: Potential transformers can be applied to different levels of voltage equipment to meet the measurement needs of other occasions.

• Durable: Voltage transformers are made of high quality raw materials and precision manufacturing technology, with good durability.

Tips: Why need a potential transformer on the line?

Firstly, power lines often carry high voltages that are unsafe for direct measurement or monitoring. By using a voltage transformer, the high voltage can be stepped down to a lower, more manageable level that is safe for measurement. This ensures the safety of personnel and equipment involved in the measurement process.

Secondly, potential transformers help isolate the measuring or monitoring instruments from the high voltage line. By stepping down the voltage, they create a separation between the high voltage network and the low voltage measurement or monitoring equipment. This isolation prevents potential damage or interference to the instruments and ensures their proper functioning.
