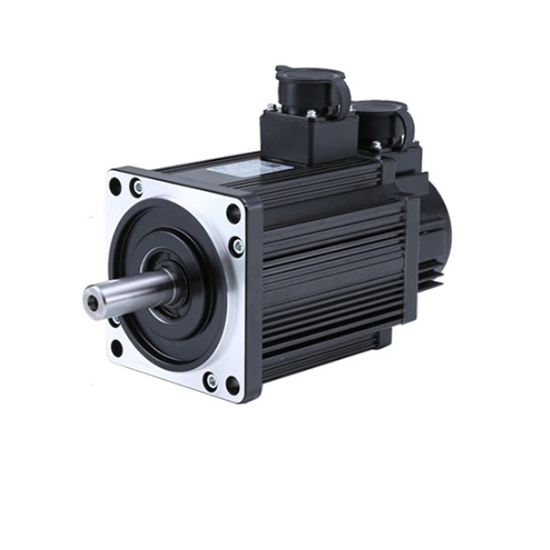

800W Three Phase AC Servo Motor, 220V, 2000 Rpm

0 reviews • Write a review

from

$535.31

Ex Tax: $535.31

Stock: In Stock
Model: ATO110ST-M04020
Weight: 1.00
SKU: ATO110ST-M04020

Available Options

Short Description

With Matched Controller

Absolute Encoder

Motor Cable & Encoder Cable

Motor Encoder Type

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

800W power rating three phase AC servo motor, rated speed of 2000 rpm, maximum speed up to 2500 rpm. Several feedback options are available such as adding motor brake, motor encoder types and cable length.

Note: For 800W AC Servo Motor, RDDLZ Provides upgraded models with more powerful features. Please go to the page https://www.ato.com/800w-ac-servo-motor.

Specification

Basics	Model	RDDLZ110ST-M04020
	Matched Drive Model	RDDLZMG-1000 (Click it to the product page)
	Square Flange Size	110 mm
	Rated Power	800 W
	Rated Voltage	single phase or three phase 220V AC
	Rated Current	3.5 A
	Rated Speed	2000 rpm
	Rated Torque	4 Nm
	Peak Torque	12 Nm
	Weight	6 Kg
	Length	189 mm
Technical Parameters	Voltage Constant	79 V/ 1000r/ min
	Torque Coefficient	1.14 N.m/ A
	Torque Inertia	0.54 x 10^-3 Kg.M²
	Line-Line Resistance	2.41 Ω
	Line-Line Inductance	7.3 mH
	Electrical Time-Constant	3 ms
	Encoder Line Number	2500 PPR
	Absolute Encoder	17 bit, 23 bit (Tamagawa brand)
	Insulation Class	Class B
	Safety Class	IP65
Environment	Temperature	-20℃ ~ +40℃
Environment	Humidity	<90%RH, (no dewing)

Dimension (unit: mm)

L (without brake): 189mm, L (with brake): 245mm

Details

Winding and Encoder Connection

1. For servo motor winding

Motor Winding Plug	Winding Lead	U	V	W	PE
Motor Winding Plug	Socket Number	2	3	4	1

2. For incremental encoder

Incremental Encoder Socket (15 Pin)	Signal Definition	5V	0V	A+	B+	Z+	A-	B-	Z-	U+	V+	W+	U-	V-	W-	PE
Incremental Encoder Socket (15 Pin)	Socket Number	2	3	4	5	6	7	8	9	10	11	12	13	14	15	1

3. For absolute encoder

Absolute Encoder Socket (7 Pin)	Signal Definition	E-	E+	SD-	0V	SD+	5V	PE
Absolute Encoder Socket (7 Pin)	Socket Number	2	3	4	5	6	7	1
