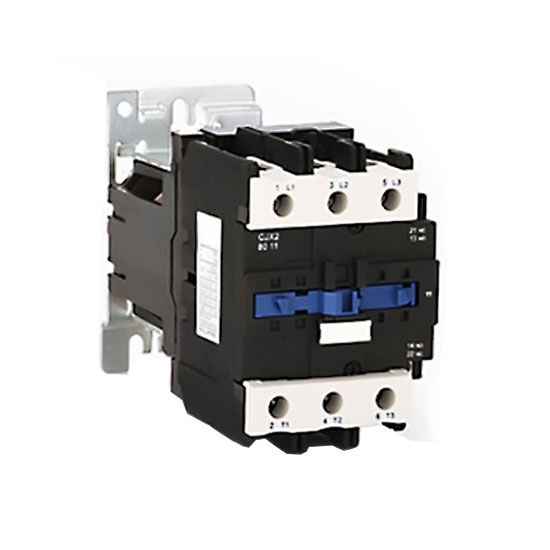

80 Amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

0 reviews • Write a review

from

$136.29

Ex Tax: $136.29

Stock: In Stock
Model: RDDLZ-DCCON-80A
Weight: 1.00
SKU: RDDLZ-DCCON-80A

Available Options

Contact Form

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cost-effectively DC contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

Specification

Model		RDDLZ-CJX2-80Z	RDDLZ-CJX2-80008Z
Rated Current		80A AC
Coil Rated Voltage (Optional)		12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC

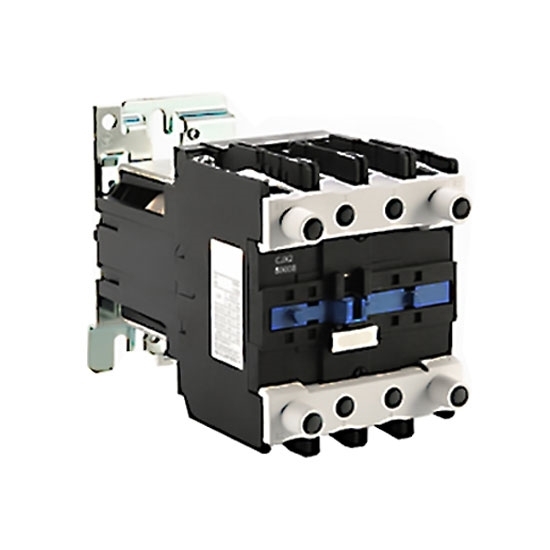

Contact Form (Optional)		3 Pole (3NO)+1NO+1NC	4 Pole (2NO+2NC)
Frequency		50Hz/ 60Hz AC
Rated Power (AC-3)	200-240V	22kW (30HP)
	380-440V	37kW (50HP)
	500-550V	45kW (60HP)
	600-690V	45kW (60HP)
Conventional Thermal Current		110A
Operating Temperature		-40℃~85℃
Operating Humidity		5~95% RH

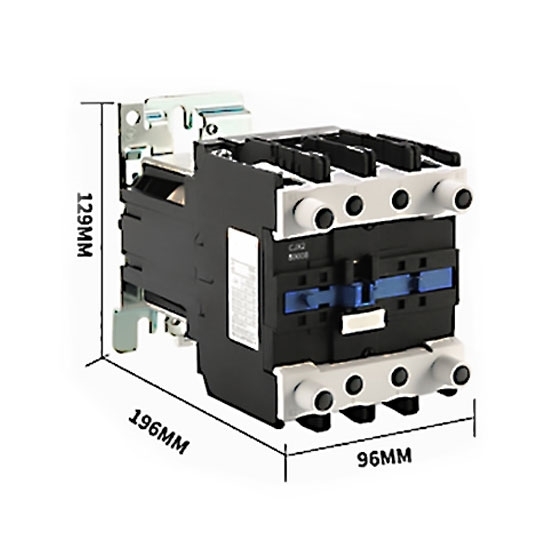

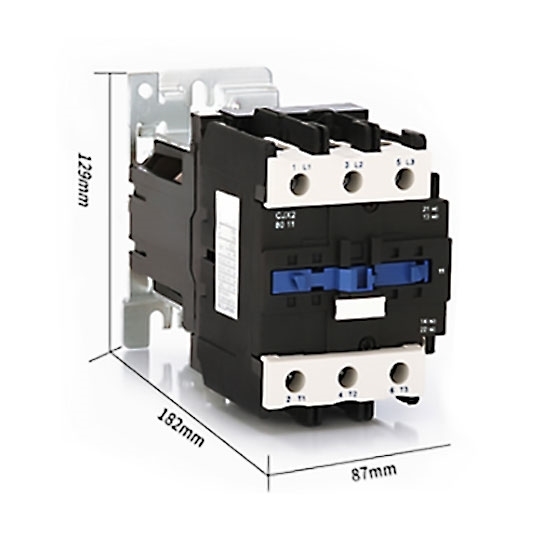

Dimensions		87 x 129 x 182mm	96 x 129 x 196mm
Weight		1.75kg

Circuits Diagram

Details

Tips: DC contactor Applications

The DC contactor adopts a modular design, which can assemble the number of contacts required by the customer and the contact form (normally open, normally closed and conversion) required by the customer with the least parts. It has a high contact breaking voltage, and adopts horizontal blowing magnetic field to extinguish the arc, and the highest breaking voltage can reach 220VDC. This DC contactor is suitable for program-controlled power supply or uninterruptible power supply system, forklift, electric vehicle, engineering machinery system.
