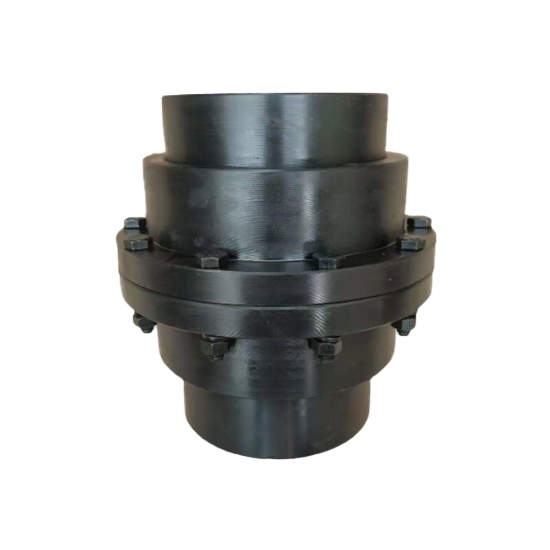

7100 Nm Drum Gear Coupling, 4800 Rpm

0 reviews • Write a review

from

$996.87

Ex Tax: $996.87

Stock: In Stock
Model: RDDLZ-GC-GICL6
Weight: 1.00
SKU: RDDLZ-GC-GICL6

Available Options

Short Description

Shaft Hole Diameter (d1)

Shaft Hole Diameter (d2)

Shaft Hole Diameter (dz)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The drum gear coupling provides a highly durable and reliable coupling, ideal for heavy-duty industrial applications. RDDLZ drum gear couplings are designed to transmit torque and absorb shock loads, making them ideal for use in machinery subjected to high stress and vibration.

Specification

Model	RDDLZ-GC-GICL6
Nominal Torque	7100 Nm
Allowable Speed	4800 rpm
Shaft Hole Diameter	d1, d2, dz	48, 50, 55, 56	60, 63, 65,70, 71, 75	80, 85, 90
Shaft Hole Length	Y,L	112	142	172
Shaft Hole Length	J1,Z1	84	107	132
Dimension	D	241
	D1	200
	A	160
	C	6		4
	C1	35	20	22
	C2	35	35	43
Moment of Inertia	0.267 kg*m2
Grease Dosage	380mL
Weight	48.2kg

Features

7100 Nm drum gear couplings can transmit high levels of torque due to their large contact area and robust construction.
Drum couplings can accommodate both angular and parallel misalignments, which can help reduce wear and tear on the connected equipment.
Drum gear couplings require minimal maintenance, thanks to their rugged design and few moving parts.
Gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.
These gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.

Dimension (Unit: mm)

Applications

Gear couplings are commonly used in heavy machineries such as steel mills, mining equipment, power generation, and paper mills. Additionally, gear couplings are frequently utilized in marine applications, such as propulsion systems and winches, due to their high torque capacity and ability to handle harsh environments.

Tips: What causes gear coupling failure?

Gear coupling failure can occur due to various reasons, some of which are:

Overloading: When the coupling is subjected to excessive loads beyond its capacity, it can lead to gear coupling failure.
Misalignment: If the gears in the coupling are not properly aligned, it can cause excessive wear and tear, resulting in gear failure.
Wear and Tear: As the coupling is used over time, the gears can wear down, leading to coupling failure.
Improper lubrication: Inadequate lubrication can cause the gears to overheat, leading to gear damage and eventually failure.
Corrosion: If the gear coupling is exposed to corrosive environments, it can cause the gears to deteriorate and fail.
Fatigue failure: Repeated loading and unloading can cause the gears to develop cracks, leading to gear coupling failure.
Manufacturing defects: If the gear coupling has any defects in its design or manufacturing, it can lead to premature failure of the coupling.

It's important to ensure proper maintenance and inspection of gear couplings to prevent failure and avoid costly downtime.
