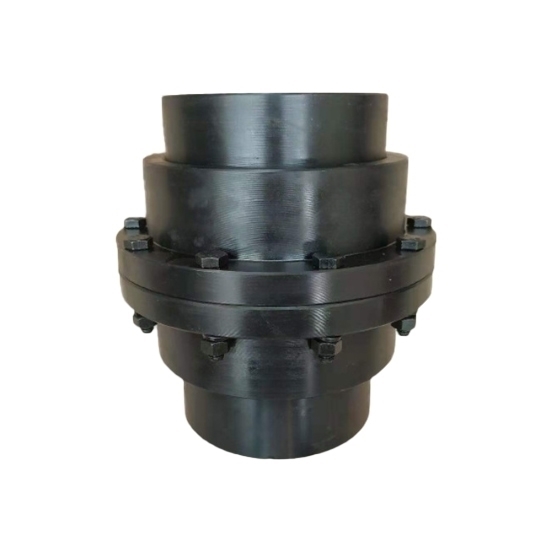

10000 Nm Drum Gear Coupling, 4500 Rpm

0 reviews • Write a review

from

$1,578.95

Ex Tax: $1,578.95

Stock: In Stock
Model: RDDLZ-GC-GICL7
Weight: 1.00
SKU: RDDLZ-GC-GICL7

Available Options

Short Description

Shaft Hole Diameter (d1)

Shaft Hole Diameter (d2)

Shaft Hole Diameter (dz)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Drum couplings belong to the group of rigid and flexible couplings with radial, axial and angular axis misalignment compensation, with a nominal torque of 10,000 Nm and a permissible speed of 4,500 rpm. Drum gear couplings are designed for operation in harsh environments and are ideally suited for use in the mining, construction and manufacturing industries.

Specification

Model	RDDLZ-GC-GICL7
Nominal Torque	10000 Nm
Allowable Speed	4500 rpm
Shaft Hole Diameter	d1, d2, dz	60, 63, 65,70, 71, 75	80, 85, 90, 95	100
Shaft Hole Length	Y,L	142	172	212
Shaft Hole Length	J1,Z1	107	132	167
Dimension	D	260
	D1	230
	A	180
	C	4
	C1	35	22	22
	C2	35	43	43
Moment of Inertia	0.453 kg*m2
Grease Dosage	570mL
Weight	68.9kg

Features

10000 Nm drum gear couplings can transmit high levels of torque due to their large contact area and robust construction.
Drum couplings can accommodate both angular and parallel misalignments, which can help reduce wear and tear on the connected equipment.
Drum gear couplings require minimal maintenance, thanks to their rugged design and few moving parts.
Gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.
These gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.

Dimension (Unit: mm)

Applications

Gear couplings are commonly used in heavy machineries such as steel mills, mining equipment, power generation, and paper mills. Additionally, gear couplings are frequently utilized in marine applications, such as propulsion systems and winches, due to their high torque capacity and ability to handle harsh environments.

Tips: What is a gear coupling?

A gear coupling is a type of mechanical coupling that connects two shafts together for the purpose of transmitting power and torque between them. It consists of two gear teeth, one attached to each shaft, which mesh with each other and transmit torque as they rotate. Gear couplings are used in a wide range of applications, including industrial machinery, turbines, and heavy-duty equipment. They are designed to be highly durable, reliable, and resistant to wear, making them ideal for use in demanding environments. Some gear couplings also have the ability to compensate for misalignment between the shafts, which can help to extend their lifespan and improve their performance.
