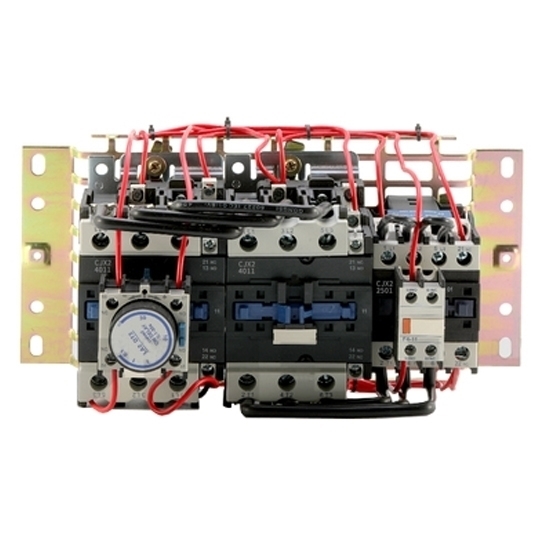

65A Star Delta Starter, 30kW/ 55kW, 220V/ 380V AC

65A Star Delta Starter, 30kW/ 55kW, 220V/ 380V AC
65A Star Delta Starter, 30kW/ 55kW, 220V/ 380V AC
0 reviews • Write a review
from
$245.29
Ex Tax: $245.29
  • Stock: In Stock
  • Model: RDDLZ-STAR-65
  • Weight: 1.00
  • SKU: RDDLZ-STAR-65

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40Hp/ 74Hp star delta starter for sale at low price. It consists of 3 contactors and an air delay head. Left contactor is connected to main circuit inlet and outlet and the main contactor of the thermal overload relay. The others are forward reverse contactors. Perfect for circuit control of 3 phase induction motor.

Star Delta Starter Specification

  • Model: RDDLZ-QJX2-65
  • Rated Operational Current (AC-3): 65A
  • Coil Rated Voltage: 220V AC, 380V AC (Optional)
  • Contact Form: 3P
  • Power of Controllable 3-phase Squirrel-cage Motor (AC-3): 220V, 30kW; 380V, 55kW
  • Conventional Heating Current: 80A
  • Rated Insulation Voltage: 690V
  • Electric Life: 600 times/h
  • Mechanical Life: 3600 times/h
  • Matching Fusing Model: RT16-63
  • Average Power Consumption (20℃) @ 50Hz: Pick-up 230VA; Holding 32A
  • Rail Size: 75mm
  • Ambient Temperature: -5℃~+40℃
  • Altitude: ≤2000m
  • Class of Pollution: Class 3
  • Installation Category: Ⅲ
  • Dimension (L*W*H): 143mm*310mm*185mm
  • Weight: 4.36kg

Air Delay Head Specification

  • Rated Current: 10A
  • Delay Time: Power Off Time Delay 0.1~30s
  • Dimension (L*W*H): 50mm*45mm*60mm
  • Auxiliary Contact: 1NO+1NC

Dimension (Unit: mm)

Wiring Diagram

Tips: How to connect the inverter with star delta starter?

The original motor line is disconnected from the power frequency power supply, directly connected to the output of the inverter, and the auxiliary contact of the contactor switched to the delta is used as the starting signal of the inverter to complete the transformation of pure inverter control.

If power/variable frequency switching is required, an interlocked switching contactor or a manual air switch should be added between the original power frequency power supply and the output of the inverter.
