8000 Lbs 12V/24V ATV 4x4 Electric Winch

0 reviews • Write a review

from

$936.38

Ex Tax: $936.38

Stock: In Stock
Model: RDDLZ-WINCH-8000
Weight: 1.00
SKU: RDDLZ-WINCH-8000

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

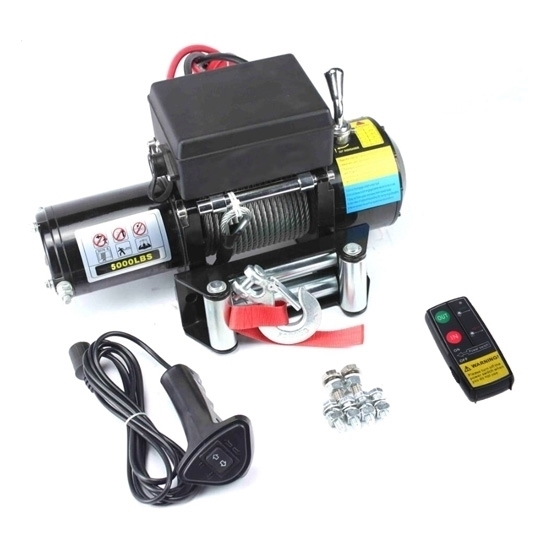

8000 lbs 12V/24V ATV 4x4 Electric Winch Kit includes everything you need to start winching, including a set of wired and wireless remote controller tools, control box, cable steel, hook, and roller fairlead to offer you an excellent working performance. 8000lbs pull capacity giving you the power and ability to rescue your vehicle from mud, inclines, and broken ground. Waterproof, mudproof and snowproof, available to work in all weather conditions.

Features

High efficiency permanent magnet 3kW/4.1hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
8000 lbs pull capacity electric winch for ATV/UTV with compact structure and cheap price.
Equipped with a gear reduction ratio of 235:1 and 3 stage planetary gear train to born with stronger pulling capacity.
Dual remote control mode, wired remote control and wireless remote control.
Free spooling with sliding ring gear, easy to operate.
Designed to keep dust and water out with an IP67 waterproof rating.
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
100% testing on winch pulling capacity and function before shipping.

Specifications

Model	RDDLZ-8000LB
Single Line Rated Pull	8000 lbs (3629kgs)
Voltage	12V/24V DC (Optional)
Motor	Permanent magnet, 3kW/4.1hp
Gear Ratio	235:1
Gear Train	3 stage planetary
Control	Remote switch, 9.8ft (3.0m) lead (Supports wired remote control and wireless remote control)
Clutch	Sliding ring gear
Cable (Dia x L)	Ø0.32" (8.1mm) × 1063" (27m)
Drum Size (Dia x L)	Ø2.5" (64mm) × 8.8" (233.5mm)
Fairlead	4-way roller fairlead
Braking Action	Automatic In-The-Drum
Overall Dimensions (L x W x H)	19.8" x 6.3" x 8.5" (503mm × 160mm × 217mm)
Mounting Bolt Pattern	255mm*114mm, Ø11
Protection Grade	IP67
Weight	36kg
Packing Size	610 x 350 x 270mm
Package Included	1 x 8000 lbs ATV winch 1 x Clevis hook 1 x Control box 1 x Wired remote controller 1 x Wireless remote controller 1 x 4-way roller fairlead 1 x Universal mounting plate 1 x Winch cable 1 x Set of bolts 1 x User manual

Parameters of Line Pull, Speed and Current at 12 Volt

Line Pull (lbs) / (kgs)	Line Speed (ft/min) / (m/min)	Current (A)
0	9.8 / (3.0)	30
2000 / (907)	7.5 / (2.3)	120
4000 / (1841)	4.9 / (1.5)	210
6000 / (2722)	3.9 / (1.2)	250
8000 / (3629)	2.9 / (0.9)	270

Line Pull and Rope Capacity in Layer

Layer	Rated Line Pull (lbs) / (kgs)	Total Rope on Drum (ft) / (m)
1	8000 / (3629)	13 / (5)
2	6540 / (2966)	23 / (11)
3	5550 / (2517)	69 / (21)
4	4800 / (2177)	92 / (28)

Tips: How to operate the electric winch?

You need to pay attention to how to operate the electric winch, otherwise you will easily hurt yourself. Let's take the situation of trapped cars as an example to tell you the specific operation method.

Before starting the operation, wear protective gloves to avoid injury to your hands. First, connect the cap of the winch remote control, if there is no wireless remote control, it is not necessary. Then open the clutch on the winch and release the cable with the remote control. When pulling the rope, you must ensure that the rope has more than 5 turns on the drum, otherwise, the rope will be loosened from the drum when under heavy load.

If the trapped vehicle is not deep, you can use the rescue vehicle as a fixed fulcrum and connect it with the rescued vehicle; if the trapped vehicle is very powerful, use rocks or trees as fixed fulcrum to connect with the trapped vehicle.

Once the cable is connected, close the winch clutch and control the drag with the remote control until the vehicle is out of sleep and can drive normally. After use, remember to clean and maintain the electric winch, otherwise it will affect the service life.
