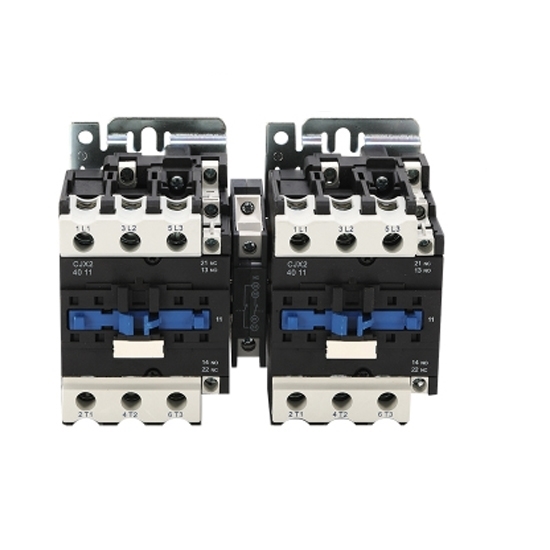

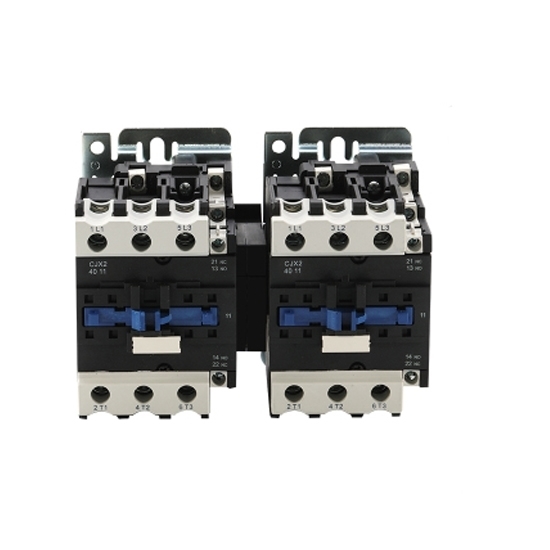

65 Amp Mechanical Interlock AC Contactor

0 reviews • Write a review

from

$125.89

Ex Tax: $125.89

Stock: In Stock
Model: RDDLZ-ACCON-65N
Weight: 1.00
SKU: RDDLZ-ACCON-65N

Available Options

Contact Form

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic AC reversing contactor with a mechanical interlock can save electric energy and eliminate power frequency noise. It is a mechanical system that has simple structure and easy mounting to control circuit.

Specification

Model			RDDLZ-CJX2-65N
Rated Operational Current	380V	AC-3	65A
		AC-4	28A
	660V	AC-3	42A
		AC-4	14A
Conventional Heating Current			80A
Rated Insulation Voltage			690V
Power of Controllable 3-phase Squirrel-cage Motor (AC-3)	220V		18.5kW
	380V		30kW
	660V		37kW
Operational Frequency	Electric Life	AC-3	600 times/h
		AC-4	150 times/h
	Mechanical Life		3600 times/h
Service Life	Electric Life (10⁴ Operations)	AC-3	60
		AC-4	15
	Mechanical Life (10⁴Operations)		800
Matching Fusing Model			RT16-80
Average Power Consumption (20℃) @ 50Hz	Pick-up		230VA
	Holding		32VA
Contact Form (Optional)			3P (Additional 1NO Auxiliary Contact) or 4P
Rail Size			35mm
Ambient Temperature			-5℃~+40℃
Altittude			≤2000m
Class of Pollution			Class 3
Installation Category			Ⅲ

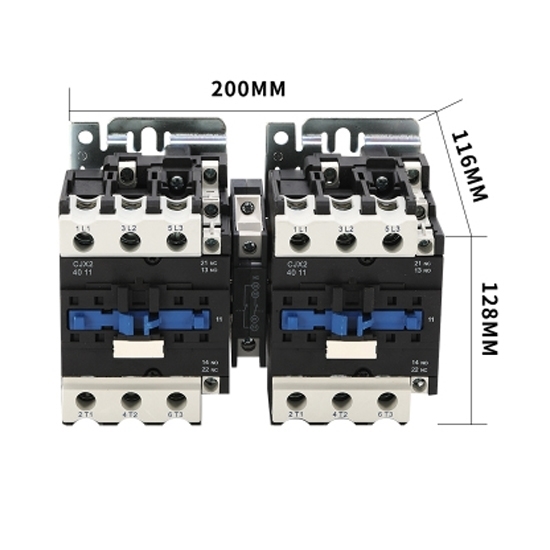

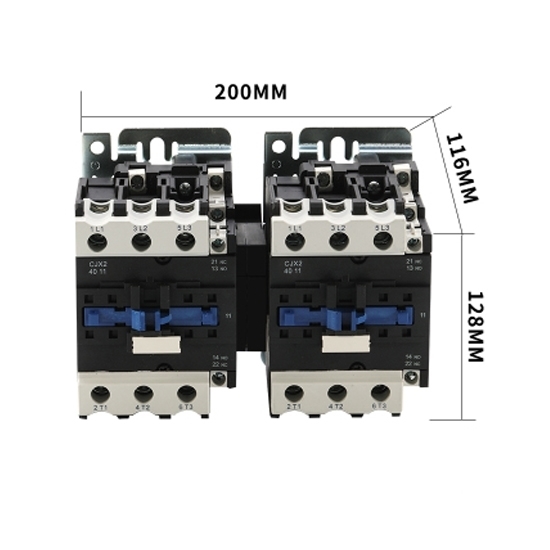

Dimensions			200 x 128 x 116mm
Weight			3kg

Tips: Auxiliary contact of AC contactor

Auxiliary contacts can be divided into normally open point NO and normally closed point NC. Normally open point NO is mainly used for contactor self-locking control and transmission of operating signals, for example: AC contactor normally open point NO connected to a red indicator light can be used as the running indicator light of the motor, when the AC contactor is energized, The normally open point NO is closed, and the indicator light is turned on to transmit the operating signal of the motor or circuit. The normally closed point NC of the AC contactor. The normally closed point NC of the AC contactor is mainly used for circuit interlocking and signal transmission. For example: The interlock function of the NC of the contactor's normally closed point is used in the motor forward and reverse control circuit. The normally closed point NC of the AC contactor is connected to a green indicator light, which can be used as a stop indicator for the circuit or motor. When the AC contactor is energized, the normally closed point NC is disconnected, the stop indicator light is off, and the corresponding running indicator light is on, and the circuit run.
