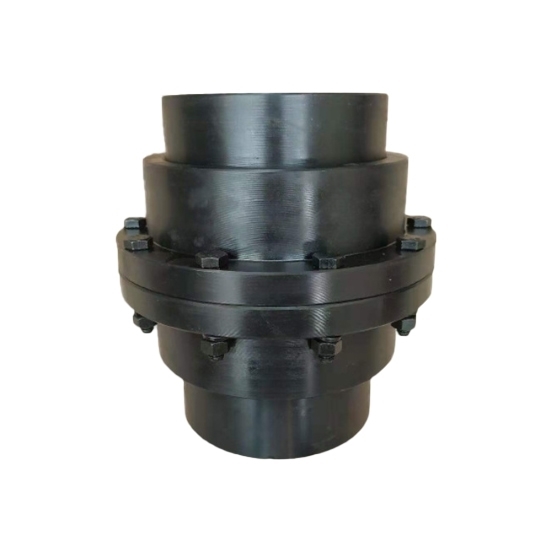

630 Nm Drum Gear Coupling, 7100 Rpm

0 reviews • Write a review

from

$219.78

Ex Tax: $219.78

Stock: In Stock
Model: RDDLZ-GC-GICL1
Weight: 1.00
SKU: RDDLZ-GC-GICL1

Available Options

Short Description

Shaft Hole Diameter (d1)

Shaft Hole Diameter (d2)

Shaft Hole Diameter (dz)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low cost drum gear coupling with a nominal torque of 630 Nm and a permissible speed of 7100 rpm. The Drum Gear Coupling is designed to operate in harsh environments, making it ideal for use in industries such as mining, construction, and manufacturing.

Specification

Model	RDDLZ-GC-GICL1
Nominal Torque	630 Nm
Allowable Speed	7100 rpm
Shaft Hole Diameter	d1, d2, dz	16， 18， 19	20， 22， 24	25， 28	30， 32， 35， 38
Shaft Hole Length	Y,L	42	52	62	82
Shaft Hole Length	J1,Z1	/	38	44	60
Dimension	D	125
	D1	95
	A	75
	C	20		10	2.5
	C1	/	/	/	15
	C2	/	24	19	22
Moment of Inertia	0.009 kg*m2
Grease Dosage	55mL
Weight	5.9kg

Features

630 Nm drum gear couplings can transmit high levels of torque due to their large contact area and robust construction.
Drum couplings can accommodate both angular and parallel misalignments, which can help reduce wear and tear on the connected equipment.
Drum gear couplings require minimal maintenance, thanks to their rugged design and few moving parts.
Gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.
These gear couplings operate with low vibration and noise, which helps to ensure smooth and efficient power transmission.

Dimension (Unit: mm)

Applications

Gear couplings are commonly used in heavy machineries such as steel mills, mining equipment, power generation, and paper mills. Additionally, gear couplings are frequently utilized in marine applications, such as propulsion systems and winches, due to their high torque capacity and ability to handle harsh environments.

Tips: How to maintain gear couplings?

Gear couplings are essential components in machinery that transmit torque and motion between shafts. To ensure their longevity and efficient operation, regular maintenance is required. Here are some tips on how to maintain gear couplings:

Inspect the coupling regularly: Check the coupling for signs of wear and tear, such as cracks, corrosion, or deformation. Look for any leaks, misalignment, or vibration in the coupling.
Lubrication: Gear couplings require lubrication to function smoothly. Check the lubricant level and ensure that it is within the recommended range. Use the recommended type of lubricant and follow the recommended lubrication schedule.
Tightening of bolts: Check the bolts of the coupling regularly to ensure that they are tight. Loose bolts can cause misalignment and lead to premature wear.
Alignment: Misalignment of the shafts can cause stress and wear on the coupling. Check the alignment of the shafts regularly and adjust them if necessary.
Cleaning: Keep the coupling clean and free of dirt and debris. Use a clean cloth to wipe the coupling regularly.
Replace damaged parts: If any part of the coupling is damaged, replace it immediately. Do not attempt to repair or reuse damaged parts.

By following these maintenance tips, you can ensure that your gear couplings operate smoothly and last longer.
