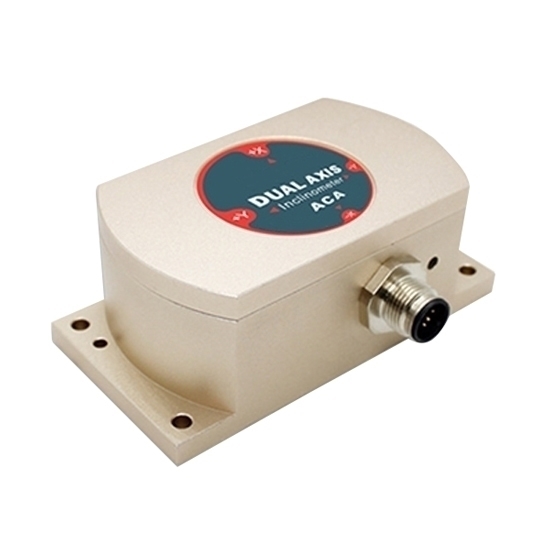

Inclinometer Sensor, Output RS232/RS485, ±3°~±30°

0 reviews • Write a review

from

$1,113.38

Ex Tax: $1,113.38

Stock: In Stock
Model: RDDLZ-IMS-816826
Weight: 1.00
SKU: RDDLZ-IMS-816826

Available Options

Short Description

Installation

Measuring Range

Measuring Axis

Output Interface

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Ideal price inclinometer sensor is used in horizontal measurement and leveling with high precision requirements. 1-axis/2-axis tilt sensor features full-temperature compensation, high precision and high resolution, and optional output RS232/RS485/RS422/TTL.

Features

It is a single/dual axis inclinometer sensor with full temperature compensation and high precision, with MODBUS communication protocol, which can replace traditional level gauges.
The inclinometer sensor has digital signal transmission and supporting computer software, data measurement and recording can be carried out at the same time, the output interface RS232, RS485, RS422, TTL optional.
The features of non-contact installation make the inclinometer sensor have good system integration. Just fix the tilt sensor on the surface of the object to be measured with screws, and the inclination angle of the object can be automatically calculated. Simple operation and convenient installation.
The inclinometer sensor has small size, strong ability to resist external electromagnetic interference, strong ability to withstand shock and vibration, and it is widely used in the field of industrial measurement.

Technical Specification

Model	RDDLZ-ACA816/ACA826T				Condition
Measuring Axis	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	X/XY (single/dual)	-
Measuring Range*	±3°	±10°	±15°	±30°	-
Resolution	0.0005°	0.0005°	0.0005°	0.0005°	-
Absolute Accuracy	0.002°	0.003°	0.005°	0.01°	@25℃
Long Term Stability	0.01°	0.01°	0.02°	0.02°	-
Zero Temperature Coefficient	±0.0002°/℃	±0.0002°/℃	±0.0002°/℃	±0.0002°/℃	-40~85℃
Sensitivity Temperature Coefficient	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	≤50 ppm/℃	-40~85℃
Power On Time	0.5s	0.5s	0.5s	0.5s	-
Response Time	0.02s	0.02s	0.02s	0.02s	-
Response Frequency	5Hz, 15Hz, 35Hz, 50Hz for set
Output Signal	RS232/RS485/RS422 (Modbus protocol) /TTL
Electromagnetic Compatibility	According to EN61000 and GBT17626
MTBF	≥50000 hours/times
Insulation Resistance	≥100MΩ
Shockproof	100g@11ms, 3 Times/Axis (half sinusoid))
Anti-Vibration	10grms, 10～1000Hz
Protection Grade	IP67
High Seismic Performance	＞2000g
Cables	Standard 2m length, wearproof, wide temperature, shielded cables 5P*5.7mm aviation connector
Dimension	924836mm
Weight	235g (without cable)

*Note: This Technical data only list ±3°, ±10°, ±15°, ±30° series for reference, other measuring range please refer to the adjacent specifications.

Electrical Specification

Item	Min	Standard	Max	Condition
Power Supply	9V	12V, 24V	36V	Standard
Power Supply	-	Other voltage	-	Customizable
Working Current	-	40mA	-	12V
Working Current	-	22mA	-	24V
Working Temperature	-40℃	-	+85℃	-
Store Temperature	-55℃	-	+100℃	-

Inclinometer Sensor Electrical Wiring

1. RS232 Wiring Definition

Line Color Function	BLACK	WHITE	BLUE	BROWN	GRAY
Line Color Function	GND Power negative	RS232 (RXD)	RS232 (TXD)	DC 9-36V Power positive	FACTORY Factory use

2. RS485 Wiring Definition

Line Color Function	BLACK	WHITE	BLUE	BROWN	GRAY
Line Color Function	GND Power negative	RS485 (D+)	RS485 (D-)	DC 9-36V Power positive	FACTORY Factory use

3. RS422 Wiring Definition

1) Connector Wiring

Line Color Function	RED	BLUE	WHITE	PINK	YELLOW	BROWN
Line Color Function	DC 9-36V Power positive	TXD+	TXD-	RXD+	RXD-	GND Power negative

2) Direct Lead Wiring

Line Color Function	RED	BLACK	WHITE	ORANGE	YELLOW	BLUE
Line Color Function	DC 9-36V Power positive	GND Power negative	TXD-	RXD+	RXD-	TXD+

Inclinometer Sensor Dimensions Diagram (Unit:mm)

Inclinometer Sensor Installation Direction Diagram

The installation must guarantee the inclinometer sensor bottom is parallel to measured face，and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

Tips: Problems during the actual installation of inclinometer sensor.

Based on the actual installation conditions of the industrial site, the status of inclinometer sensor in most mechanical equipment is as follows:

The sensitive axis of inclinometer sensor is not coincident with or parallel to the actual tilt axis.
The actual tilt axis can only be estimated, and cannot be accurately judged and determined.
When the X-axis is tilted, the Y-axis will also change at the same time due to the processing or matching errors of the machine under test, which will cause a horizontal axis error. The greater the angle, the greater the error (except for high-precision machinery and equipment).
During the movement, the tilt axis is in the process of regular or irregular changes.

In most industrial field measurements, both horizontal axis error and axis misalignment occur, and they may exist at the same time. Using a three-axis turntable for testing, these effects can be found.

Therefore, to calculate the actual measurement accuracy of the inclinometer sensor, you cannot simply look at the non-linear index, but also look at the horizontal axis error, axis alignment and other indicators.
