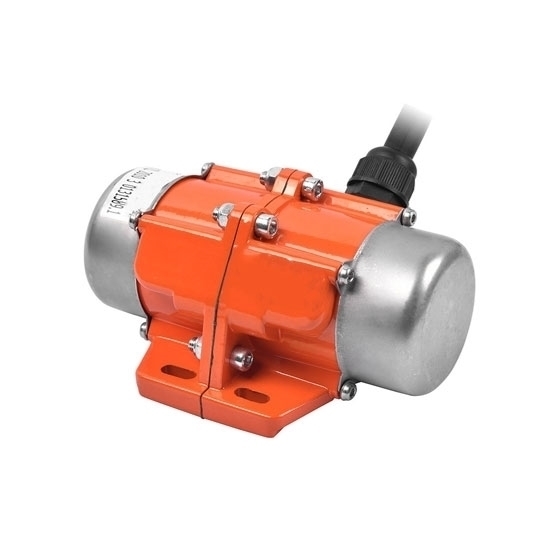

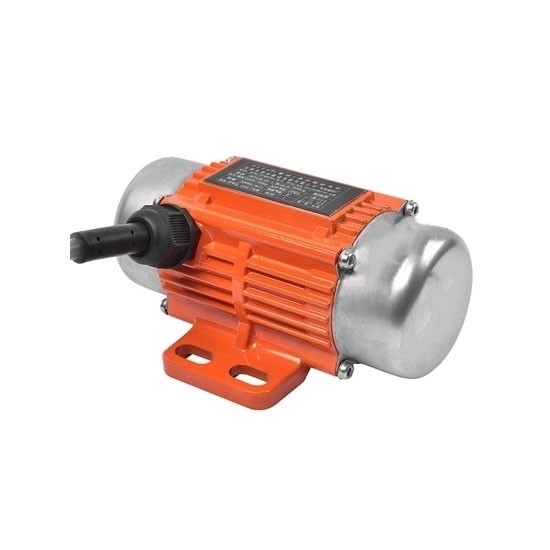

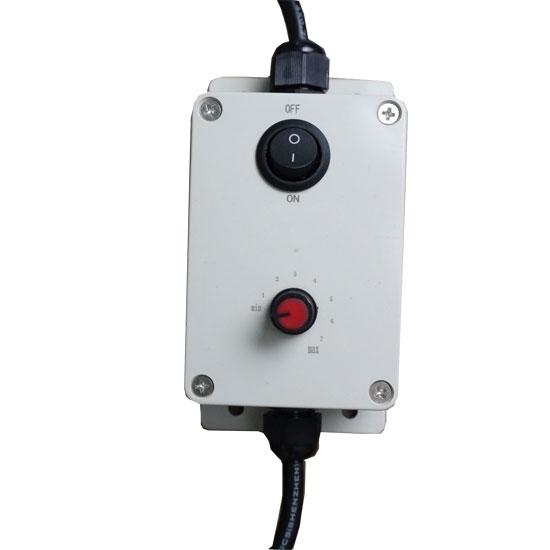

220V/110V AC single phase asynchronous vibration motor is available with an adjustable speed controller, 60W power, 50Hz 3000rpm & 60Hz 3600rpm frequency, 2 pole, CE certification, IP65 waterproof and mini size, ideal for industrial use.

Features

• Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
• The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
• 1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Dimension (Unit: mm)

Internal Structure

Applications

RDDLZ 60W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: How does this single-phase AC asynchronous vibration motor generate vibration?

The single-phase AC vibration motor creates vibration through eccentric weights attached to both ends of the rotor:

• When the motor rotates, the eccentric weights generate unbalanced centrifugal force, creating vibration.
• The intensity of the vibration can be adjusted by modifying the eccentric weight settings.
• If the eccentric weight is increased, the vibration force increases; if reduced, the vibration force decreases.
