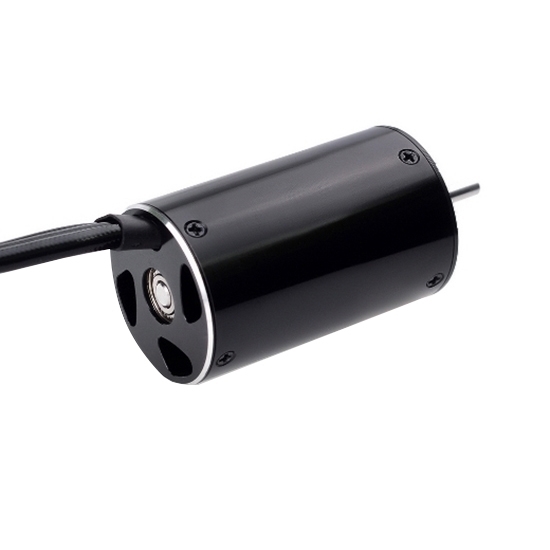

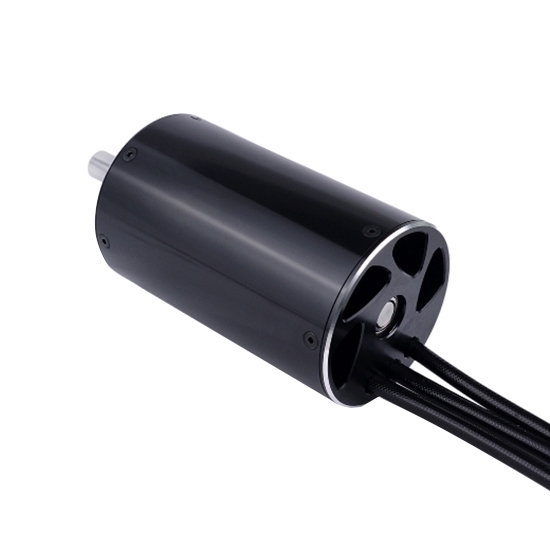

Buy a cheap 600KV brushless motor online, which is designed for RC boats. It has 50V Max voltage. Waterproof brushless motor has the advantages of small size, high efficiency and long service life.

Specifications

Model: RDDLZ-SP-056102-10
Rotational Speed: 600KV
Maximum Current: 126A
Maximum Voltage: 50V
Maximum Power: 6300W

Length: 102mm
Diameter: 56mm
Winding Type: WYE
Number of Turns: 3Y
No-load Current: 1.8A

Max Seed: 30000KV
Number of Rotor Stages: 4
Shaft: 8mm
Weight: 1040g

Features

600KV brushless motor has a 4-stage 12-slot high-torque motor design.
CNC machined billet, 6061-T6 aluminum heat sink.
High-purity copper coil for maximum performance.
High-speed ABEC5 oversized bearings.
Highly balanced rotor, high smoothness, accuracy and high speed.
Ultra-thin (0.2mm) stator blades.
Removable/replaceable rotor.
Precision design for maximum energy conversion.

Dimension (Unit: mm)

Detail

Tips: Is lower KV better for brushless motors?

The higher the KV, the higher the resistance. Higher resistance results in a slower motor. This means that the rotation rating is inversely proportional to the amount of electricity produced by the motor. Therefore, brushless motors with lower KV tend to be faster.
