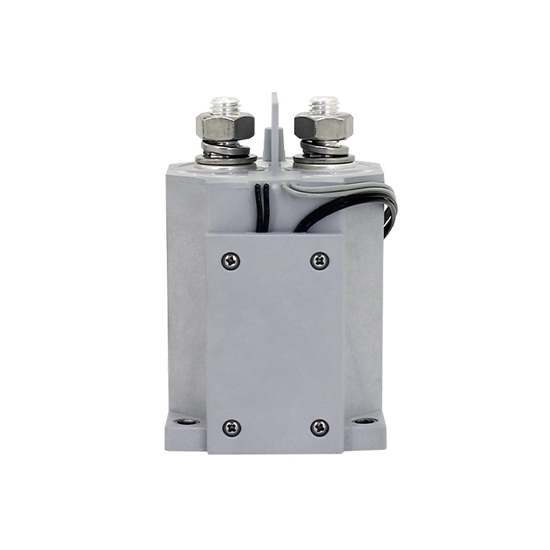

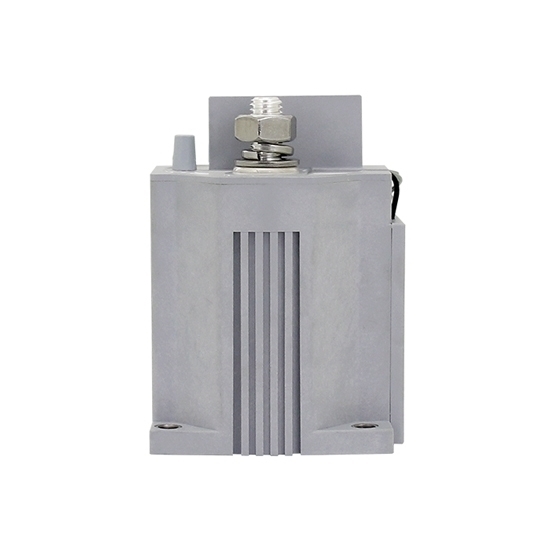

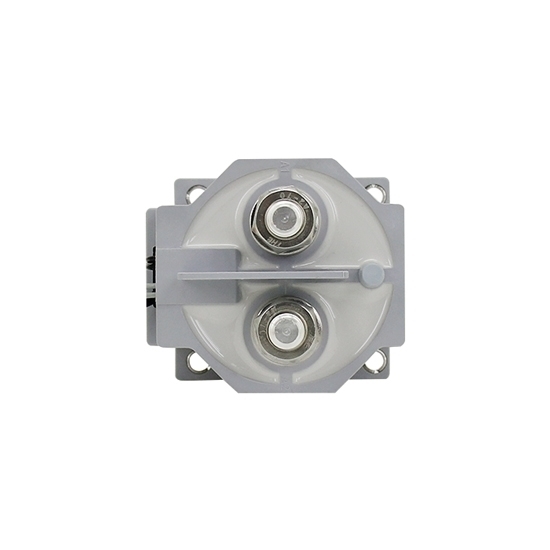

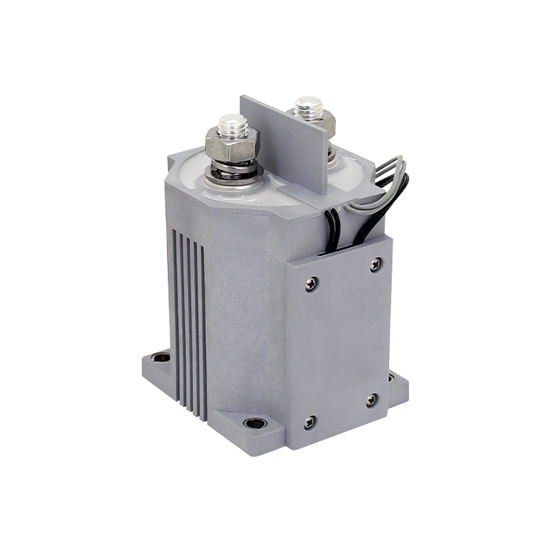

600A High Voltage DC Contactor, 9-36V Coil Voltage

0 reviews • Write a review

from

$304.46

Ex Tax: $304.46

Stock: In Stock
Model: RDDLZ-DCCON-600
Weight: 1.00
SKU: RDDLZ-DCCON-600

Available Options

Auxiliary Contact

Auxiliary Contact Form

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-voltage DC contactor is a high-voltage safety switch in DC systems. 600A DC contactor provides a 9-36V coil voltage, NO main contact form, non-polarity, and NO/NC auxiliary contact, commonly used in new energy vehicles, energy storage and photovoltaic systems, DC charging stations, and industrial and rail transportation applications.

Features

600A DC contactor adopts high-strength epoxy resin sealing with nitrogen-based gas filling, eliminating arc leakage risks, preventing contact oxidation, and ensuring safe operation without fire or explosion during its service life.
It provides reliable performance with 600A continuous current at 85℃, IP67 contact protection, insulation resistance up to 100MΩ (1000V DC), and dielectric strength of 3.5kV between contacts and coil.
High voltage DC contactor meets IEC 60664-1, GB/T14048.1, GB/T14048.4 standards, complies with RoHS (2015/863/EU) and REACH (1907/2006/EC), and is certified by CE, CCC, and RoHS.

Specifications

Model		RDDLZ-ADH-600
Main Contact Specification
Contact Arrangement		1K (1NO)
Contact Polarity		Non-polarity
Contact Resistance		≤0.5mΩ
Contact Voltage Drop		≤0.1V (at 200A)
Max. Switching Voltage		1,500V DC
Max. Breaking Current		4,000A (320V DC) 1 Ops
Electrical Endurance (Resistive Load)		1,000 Ops (1,000V DC, 600A)
		2,000 Ops (750V DC, 600A)
		3,000 Ops (450V DC, 600A)
Mechanical Endurance		200,000 Ops
Withstand Current		600A, Continuous
		750A, 90s
		1,000A, 40s
		2,100A, 1s
		18,000A, 10ms
Performance Parameter (at 23℃)
Pickup Voltage		See Coil Parameter Tables
Dropout Voltage		See Coil Parameter Tables
Pickup Time		≤40ms
Contact Bounce Period		≤5ms
Dropout Time		≤10ms
Dielectric Strength	Between Main Contacts	10,000V DC 1 min, Leakage Current≤1mA
	Between Main Contact and Coil	3,500V DC 1min, Leakage Current≤1mA
Insulation Resistance	Initial State	1,000MΩ (1,500V DC 1min)
	After Electrical Life	500MΩ (1,500V DC 1min)
Shock	Stability	20g (Power On)
	Strength	50g
Vibration		20g, 80~2,000Hz, 1/2 Sine Wave (Power On)
Relative Humidity		5%~95%RH
Temperature		-40℃~85℃
Load Terminal		External Thread M10
Weight		About 1000g
Dimension		67x75.5x104mm
Installation Method		Bottom Installation
Temperature Rise		Main Contact Temperature Rise≤50K (370mm2, 600A Continuous)
Auxiliary Contact Parameter
Aux. Contact Arrangement		FK/FB/FZ (1NO/1NC/1CO)
Aux. Contact Rated Current		5A
Aux. Contact Max. Breaking Voltage		120V DC
Coil Parameter
Coil Voltage		9-36V
Pickup Voltage (DC)		9-36V
Dropout Voltage (DC)		5-7V
Coil Resistance		1.8Ω±10%
Starting Current		≤4A
Holding Power		≤8W

Dimensions (Unit: mm)

Wiring Diagram

Note: A1&A2 main terminals with non-polarity; 3&4&5 auxiliary contact terminals; 1&2 Circuit diagram 9-36V.

Applications

High voltage DC contactors are widely applied in electric vehicles (EVs), renewable energy systems (solar and wind), energy storage systems (ESS), DC charging stations, uninterruptible power supplies (UPS), and industrial equipment that requires safe and reliable DC switching.

Tips: Where is a 600A high voltage DC contactor commonly applied?

The 600A high voltage DC contactor is commonly applied in electric vehicles, energy storage systems, solar/wind inverter systems, and industrial power control equipment. In these environments, it acts as a safety switch and protective device, allowing operators to disconnect circuits when needed and preventing failures caused by short circuits or overloads. Its balance of current capacity and compact size makes it especially suitable for mid-to-high power applications where reliability is essential.
