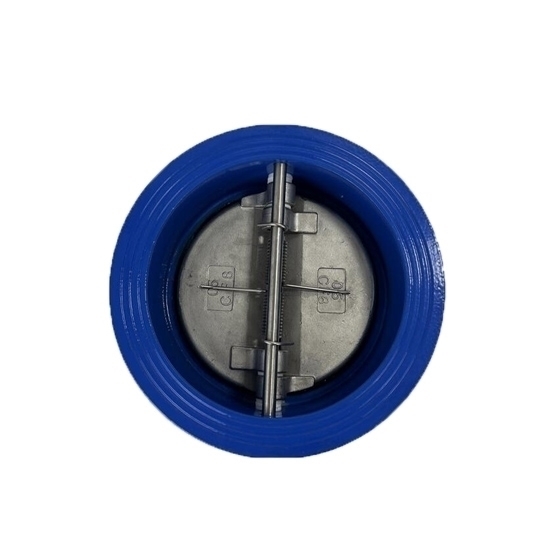

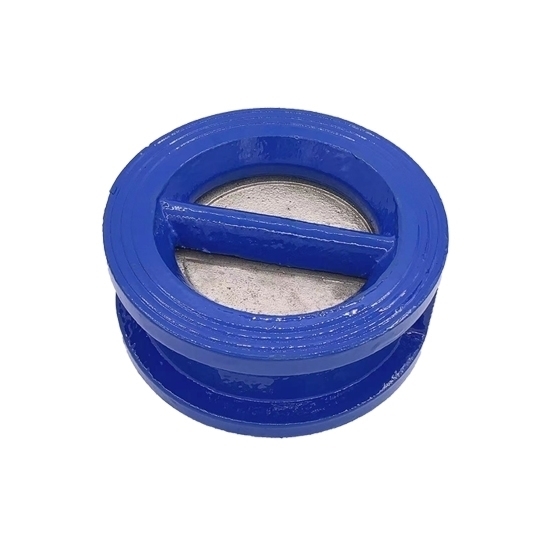

6" Dual Plate Wafer Check Valve

0 reviews • Write a review

from

$216.76

Ex Tax: $216.76

Stock: In Stock
Model: RDDLZ-DPCV-150
Weight: 1.00
SKU: RDDLZ-DPCV-150

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Order a 6" dual plate check valve from a better manufacturer. The wafer check valve provides low price, ductile iron materials, PN 1.6MPa, DN150, can respond quickly and reliably to changes in flow direction.

Specifications

Model: RDDLZ-DH77X-16Q
Nominal Diameter: 6 inch (DN150)
Nominal Pressure: PN1 .6MPa
Working Temperature: -15℃~150℃
Material: Ductile Iron
Connection Method: Clip
Suitable Mediums: Fresh Water, Foul Water, Air Steam, Food Medicines, Chemical Reagents, Various Oil and Acid Resemble.

Dimension

DN		D	D1	D2	L	R	t	Weight
mm	inch
150	6	192	145	116.9	70	65.7	30	7.3kg

Applications

The dual plate check valve is a versatile valve used to regulate the flow of fluids through a pipeline. Its compact design and efficient operation make it suitable for a wide range of applications, including water and wastewater treatment, oil and gas pipelines, and industrial processing.

Tips for installing a dual plate wafer check valve

Proper alignment: Make sure that the valve is installed in the correct orientation and that the flow direction is correct. The arrow on the valve body should point in the direction of flow.
Proper torque: Use the correct torque values when tightening the bolts that secure the valve between the flanges. Over-tightening can damage the valve, while under-tightening can cause leaks.
Proper gasket: Use the appropriate gasket material for the application and ensure that it is properly installed. The gasket should be placed between the valve and the flange faces to prevent leaks.
Proper pipe support: Make sure that the piping system is adequately supported to prevent undue stress on the valve.
Proper cleaning: Clean the valve thoroughly before installation to remove any dirt or debris that may have accumulated during storage or transport.
