High quality and safety 6 kVA capacity isolating transformers, convert 480V 3 phase to 380V 3 phase, with better dielectric strength and insulation resistance. It is designed for use in control circuits and general applications such as mechanical and electronic equipment, precision machine tool, CNC machine tool, lighting, etc.

6 kVA Isolation Transformer Specifications

Note:

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

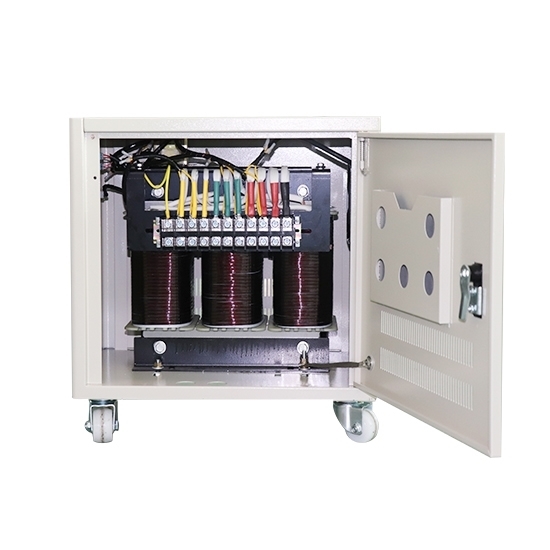

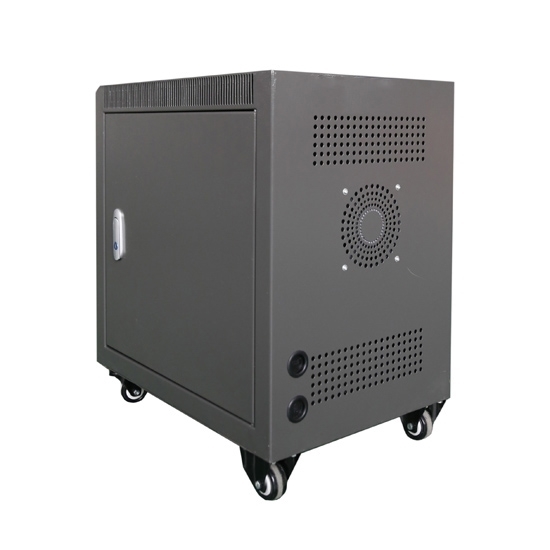

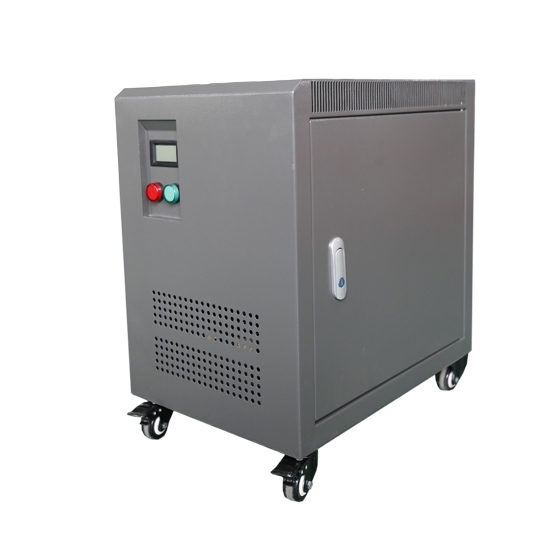

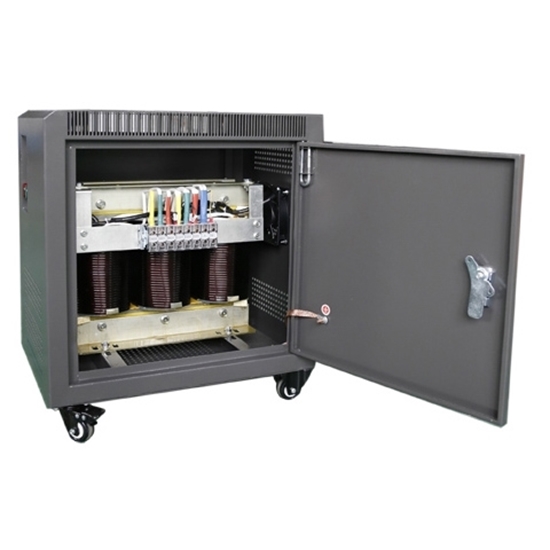

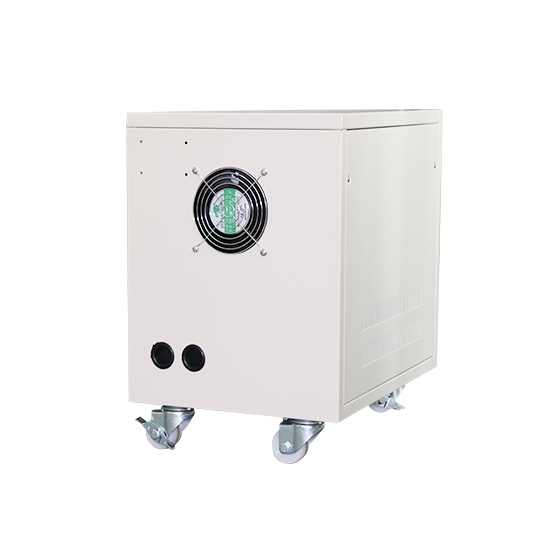

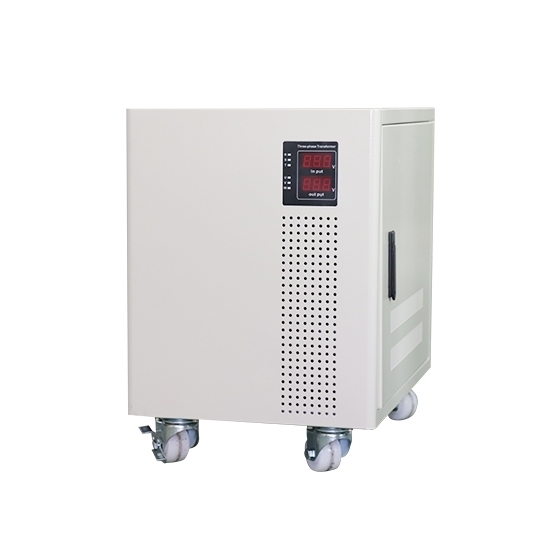

3 Phase Isolation Transformer Details

6 kVA Isolation Transformer Installation Dimension

Tips: Difference between single-phase and three-phase RDDLZ isolation transformers

RDDLZ three-phase isolation transformer has three windings around one iron core, you can simultaneously transform three-phase power voltage to the secondary winding whose output is also three-phase power. And the single-phase isolation transformer core only has one winding, it can only transform one-phase power to the secondary side of the output. In large substations and power plants, three single-phase transformers are also used together to form a three-phase transformer which is called ''combined three-phase transformer''. Generally, Grid transmission and industry adopt three-phase power, so they all use three-phase transformers. The single-phase transformers are generally used for civilian need single-phase power supply such as household appliances and so on, its capacity is relatively small. Compared with single-phase isolation transformer, three-phase isolation transformer with the same capacity has advantages like smaller size, lower loss and material-saving, so does the motor.
