50mm Spherical Roller Bearing, Double Row

0 reviews • Write a review

from

$90.62

Ex Tax: $90.62

Stock: In Stock
Model: RDDLZ-SRB-50
Weight: 1.00
SKU: RDDLZ-SRB-50

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

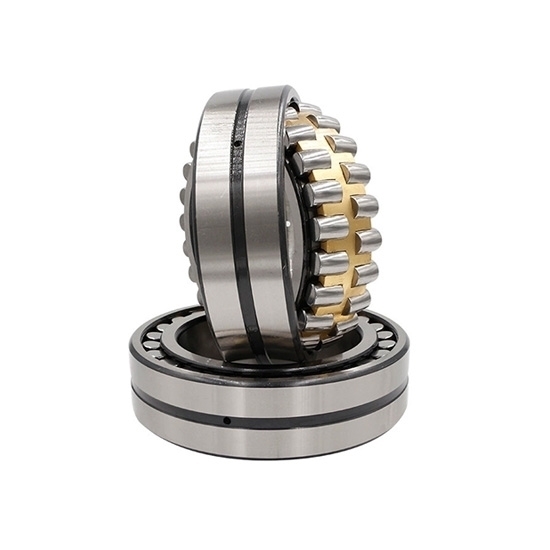

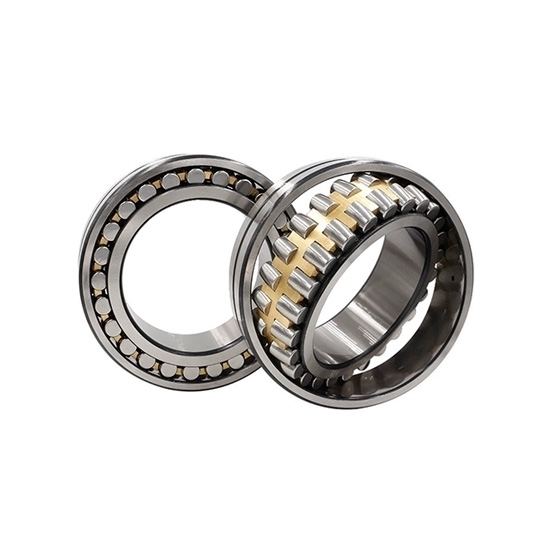

Cheap price spherical roller bearing comes with an inner diameter of 50mm, outer diameter of 90mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. Pressed steel cage of roller bearing has high wear resistance and spaces the rollers for even load distribution and prevents contact to reduce friction, vibration, and noise.

Specification

Model: RDDLZ-22310
Inner diameter: 50mm
Outer diameter: 110mm
Width: 40mm
Accuracy class: P5
Oil lubrication limit speed: 2600 rpm
Grease lubrication limit speed: 2300 rpm
Cr: 1407 kN
Cor: 795 kN
Bearing material: Bearing steel

Dimension (mm)

Application

Tips: What is Spherical Roller Bearing?

Spherical roller bearings have double-row rollers, the outer ring has a common spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. This ingenious structure makes it have self-aligning performance, so it is not easy to be affected by the angle error or shaft bending of the shaft and the bearing housing, and is suitable for installation errors or shaft deflection that cause angle errors. In addition to bearing radial loads, the bearing can also bear axial loads acting in both directions.
