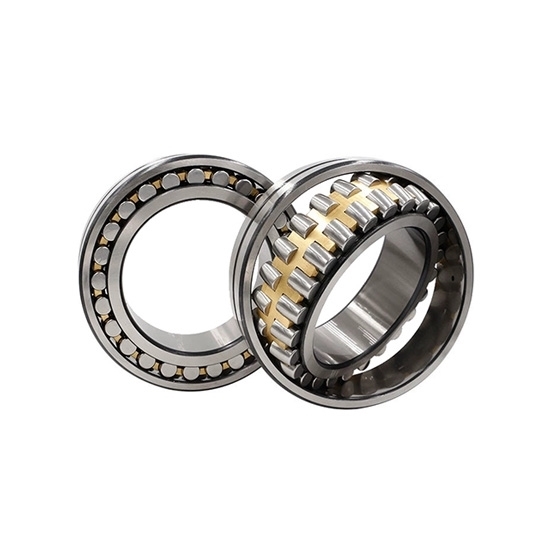

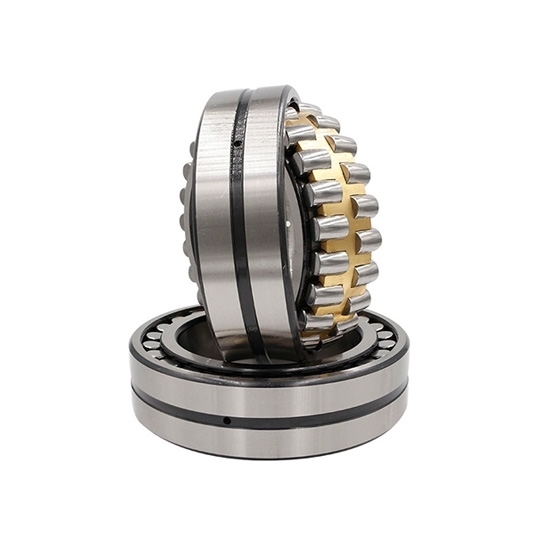

40mm Spherical Roller Bearing, Double Row

0 reviews • Write a review

from

$78.15

Ex Tax: $78.15

Stock: In Stock
Model: RDDLZ-SRB-40
Weight: 1.00
SKU: RDDLZ-SRB-40

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-accuracy 40mm spherical roller bearing comes with an outer diameter of 90mm, width of 33mm, oil lubrication limit speed of 2600 rpm, and grease lubrication limit speed of 2300 rpm. The double-row spherical roller bearing has low noise, long service life and is not easy to get hot.

Specification

Model: RDDLZ-22308
Inner diameter: 40mm
Outer diameter: 90mm
Width: 33mm
Accuracy class: P5
Oil lubrication limit speed: 2600 rpm
Grease lubrication limit speed: 2300 rpm
Cr: 840 kN
Cor: 15468 kN
Bearing material: Bearing steel

Dimension (mm)

Application

Tips: What are spherical roller bearings used for?

Spherical Roller Bearings are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction.
