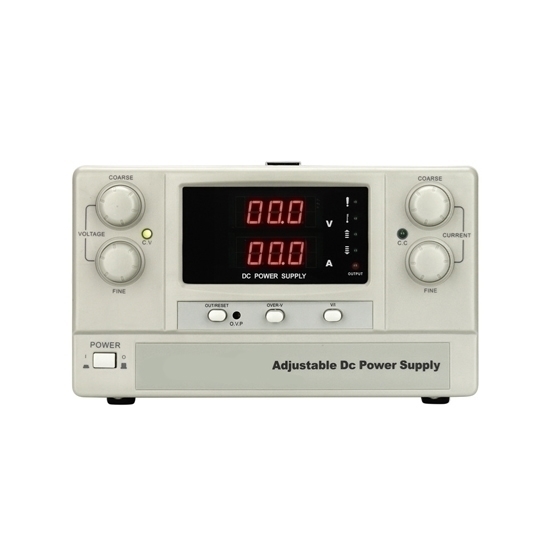

50A 60V 3000W Variable DC Power Supply

0 reviews • Write a review

from

$1,150.39

Ex Tax: $1,150.39

Stock: In Stock
Model: RDDLZ-VDCPS6050K
Weight: 1.00
SKU: RDDLZ-VDCPS6050K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50 amp 60 volt variable DC power supply features adjustable voltage and current outputs, allowing users to fine-tune settings based on specific requirements. The versatility and precision of this adjustable DC power supply make it an essential tool for electronics labs, testing environments, and various technical applications, offering reliability and adaptability in powering electronic components and systems.

Specification

Model	RDDLZ-JK6050K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-60V
Output Current Range	0-50A
Output Power	3000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-20℃ to + 70℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

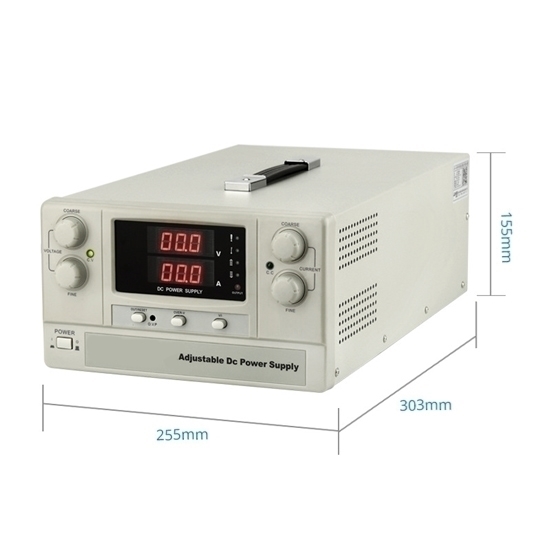

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg

Detail

Tips: What is the difference between linear and switching variable DC power supplies?

Linear and switching variable DC power supplies differ in their voltage regulation methods and efficiency. In a linear power supply, voltage regulation is achieved through a variable resistor, dissipating excess energy as heat. This method results in a simpler design but lower efficiency, especially when the voltage drop is significant. On the other hand, switching variable DC power supplies use a more complex circuitry involving high-frequency switching transistors and an energy storage component like an inductor or capacitor. This enables them to regulate voltage more efficiently by rapidly switching the input voltage on and off. Switching supplies are generally more energy-efficient than linear ones, producing less heat and providing a compact design. However, they may introduce more electrical noise and complexity to the system.
