50A 120V 6000W Variable DC Power Supply

0 reviews • Write a review

from

$2,452.29

Ex Tax: $2,452.29

Stock: In Stock
Model: RDDLZ-VDCPS12050K
Weight: 1.00
SKU: RDDLZ-VDCPS12050K

Available Options

Input Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

50 amp 120 volt variable DC power supply is designed with the capability to adjust both voltage and current parameters, offering flexibility for diverse electronic components and projects. Its regulated nature guarantees a stable output, safeguarding connected devices from voltage fluctuations.

Specification

Model	RDDLZ-JK12050K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-120V
Output Current Range	0-50A
Output Power	6000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

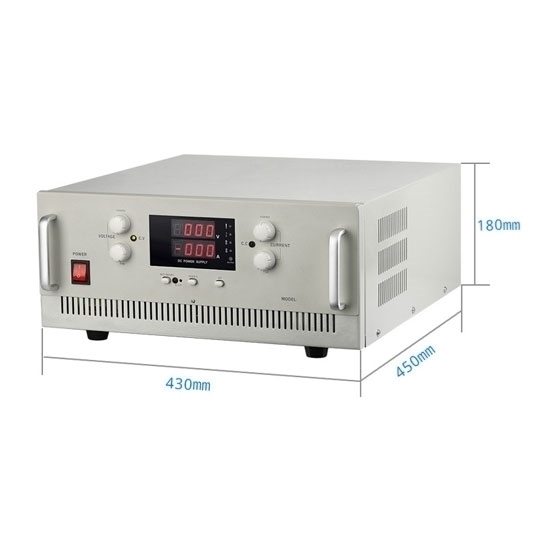

Size	430 (L) x 450 (W) x 180 (H) mm
Weight	28kg

Detail

Tips: Can a variable DC power supply be used for powering sensitive electronic components?

Yes, a variable DC power supply can be used to power sensitive electronic components effectively. Its adjustable voltage feature allows precise control over the output voltage, enabling users to match the specific requirements of the components being powered. This is crucial for sensitive electronics, as it prevents overvoltage or undervoltage conditions that could damage the components. Additionally, variable DC power supplies often provide stable and regulated output, minimizing fluctuations that could adversely affect sensitive devices. The ability to set current limits further enhances protection, preventing excessive current from reaching the components. Overall, a variable DC power supply offers the flexibility and control necessary to meet the stringent power requirements of sensitive electronic components, making it a reliable choice for various applications.
