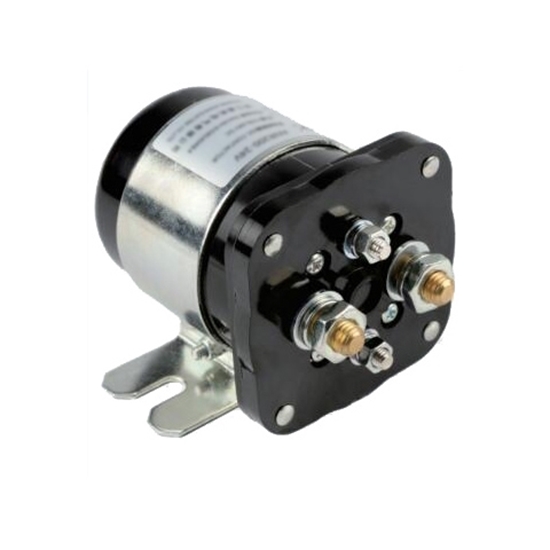

500A DC Contactor, Single Pole, 12V/24V/48V

0 reviews • Write a review

from

$205.63

Ex Tax: $205.63

Stock: In Stock
Model: RDDLZ-DCCON-C500
Weight: 1.00
SKU: RDDLZ-DCCON-C500

Available Options

Short Description

Coil Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12 volt, 24 volt, 48 volt contactor is a high current contactor for DC loads, 500A rated current, with one normal open contact, using for battery, rectification power supply, pump motor and other electronic vehicles.

Features

500 amps rated load current of contact circuit.
12V, 24V, 48V DC coil rated voltage for selection.
The allowed range of coil voltage is ±20%.
2A/48VDC and 5A/24VDC auxiliary contact rated load to choose.
Mechanical life up to 300 thousand times.

Basics	Model	RDDLZ-NR500
	Body Size	856893 mm
	Weight	800 g
Technical Parameters	Coil Rated Voltage	12V/24V/48V
	Rated Load Voltage	12~72V DC
	Contact Circuit Rated Load Current	500 A
	Contact Form	1 NO
	Overload Current	≤7 le
	Coil Power	≤7.2 W
	Main Contact Voltage Drop at 100A Load	≤100 mV
	The Allowed Range of Coil Voltage	±20%
	Pull-In Time (N/O Contacts to Open)	≤30 ms
	Drop-Out Time (N/O Contact to Close)	≤20 ms
	Insulation Resistance	≥50 MΩ
	Dielectric Withstanding Voltage	50Hz/60Hz 1500VAC/Min
	Electric Life	Continuous 20000 times
	Mechanical Life	300 thousand times
Environment	Operating Temperature	-25℃~55℃
	Operating Humidity	5~95% RH
	International Protection	IP 50

Installation Diagram (Unit: mm)

Tips: What is a DC contactor?

DC contactor is mainly used for remotely connecting and disconnecting the DC circuit, as well as frequently starting, stopping, reversing and plug braking the DC motors. It's also widely used for connecting and disconnecting the lifting electromagnet, solenoid valve, clutch's magnetic coils. DC contactor has two structure of stereoscopic arrangement and plane arrangement, some products are derived on the basis of AC contactor. Therefore, structure and working principle of the DC contactor are basically the same as that of AC contactor, which mainly consists of three parts, electromagnetic mechanism, contact system and arc-extinguishing equipment.
