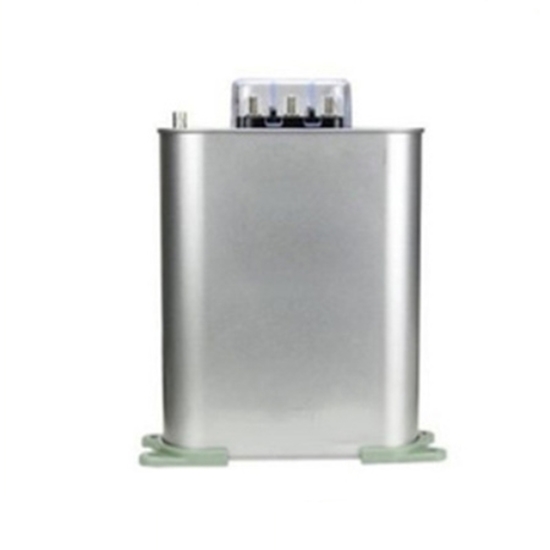

5 Kvar Shunt Power Capacitor, 3 Phase, 450V, Self-healing

0 reviews • Write a review

from

$102.36

Ex Tax: $102.36

Stock: In Stock
Model: RDDLZ-CAP-45005
Weight: 1.00
SKU: RDDLZ-CAP-45005

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

5 kvar 3 phase Power Capacitor Features

It is suitable for low voltage AC power system with 450V.
It has built-in insure device and discharge resistor for reliable.
Small volume, light weight and convenient for you to install.
With excellent self-healing performance.
Low loss, little radiation and low temperature rise.

5 kvar 3 phase Power Capacitor Specifications

Model	0.45-5-3
Shape	Rectangular
Weight	1 Kg
Height	105 mm
Rated Voltage	450V AC
Rated Capacity	5 kvar (78.6 μF)
Rated Current	6.4 A
Rated Frequency	50Hz or 60Hz
Capacity Tolerance	-5%~+10%
Outgoing Terminal	M5
Connection	3 line-△ type / 4 line-Y type
Anti Voltage	Between two pole 2.15 times rated voltage is 10s; Between two pole 3 kv please choose highest value 10s; There is noperpetuity puncture and flash over.
Max Permit Over Voltage	1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours. 1.2 times rated voltage, it is not more than 5 minutes. 1.3 times ratedvoltage, it would not more than 1 minute.
Max Permit Over Current	It is permit that the over current is not more than 1.3 times rated current.
Safety	Self healing, Sheet metal enclosure
Certification	GB/T 12747-2004, IEC60831: 212002

Note: Need more models information of the 3 phase shunt capacitors, please click here.

5 kvar 3 phase Power Capacitor Dimension (mm)
Tips: Functions of shunt capacitor?

Shunt capacitor in parallel on bus system, similar to a capacitive load on the system bus, absorbs the capacitive reactive power of system, which is equivalent to shunt capacitor from perceptual reactive power to the system. Therefore, shunt capacitor can provide the perceptual reactive power to the system and the power factor of system operation, improve the voltage level of electrical terminal bus. Meanwhile, it reduces the perceptual reactive power transmission on lines and the voltage and power loss, thus increasing the transmission capacity of lines.
