Nema 23 Stepper Motor Linear Actuator, 2 Phase, 4A, 2Nm

0 reviews • Write a review

from

$209.54

Ex Tax: $209.54

Stock: In Stock
Model: RDDLZ-STEPL-42
Weight: 1.00
SKU: RDDLZ-STEPL-42

Available Options

Short Description

Motor Type

Motor Screw Lead

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

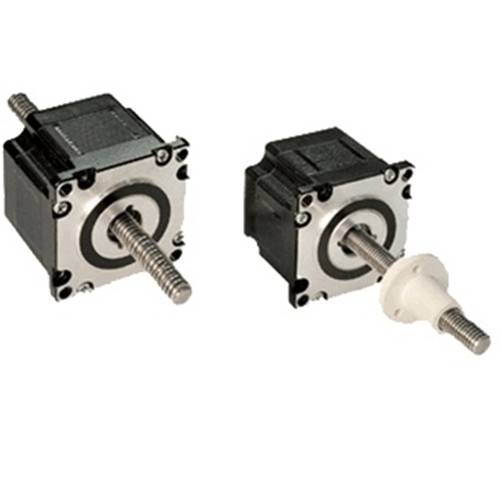

This Nema 23 stepper motorl inear actuator has 2 phase stepper motor and 152mm length lead screw, available in external shaft style and non-captive shaft style version. Rated current of 4A and holding torque of 2 Nm, there are 9 different lead screw specifications for selection.

Stepper Motor Linear Actuator Specification

Model Type	External Shaft	Non-Captive Shaft
	57H280-4004AST	57H280-4004GTS
Weight	2 kg
Motor Length	80 mm
Phase	2 phase
Step Angle	1.8°
Rated Current	4 A
Resistance	0.65 Ω
Holding Torque	2 Nm
Rotor Inertia	400 g-cm²

Select Leadscrew
Choose your stepper motor linear actuator screw from one of the available options:

Screw Diameter		Lead		Travel Per 1.8 Step
(in)	(mm)	(in/rev)	(mm/rev)	(in/step)	(mm/step)
0.315	8	0.079	2	0.00039	0.01
0.315	8	0.157	4	0.00079	0.02
0.315	8	0.315	8	0.00157	0.04
0.394	10	0.079	2	0.00039	0.01
0.394	10	0.157	4	0.00079	0.02
0.394	10	0.394	10	0.00197	0.05
Note: Screw of 8mm diameter is made of copper, and the screw of 10mm diameter is made of plastic.

Stepper Motor Linear Actuator Dimension (Unit=mm)

1. Non-captive shaft style

L=80mm

2. External shaft style

L=80mm

Details

Tips: Daily maintenance of stepper motor linear actuator
We must have maintenance of the stepper motor linear actuator in our daily work in order to guarantee the safety, reliability, economy and long-time running of the stepper motor linear actuator so as to meet the demand of production:

Keep the motor clean and prevent oil, water and other pollution from entering the motor.
Check whether the connecting terminal bolt and base fixed bolt of the motor are loose.
Check the rotation of the motor fan.
Check whether the motor shell is obviously heated and whether the bearings at both ends have oil leakage.
Please note if there is abnormal nose, vibration and special smell of the motor in operation.
