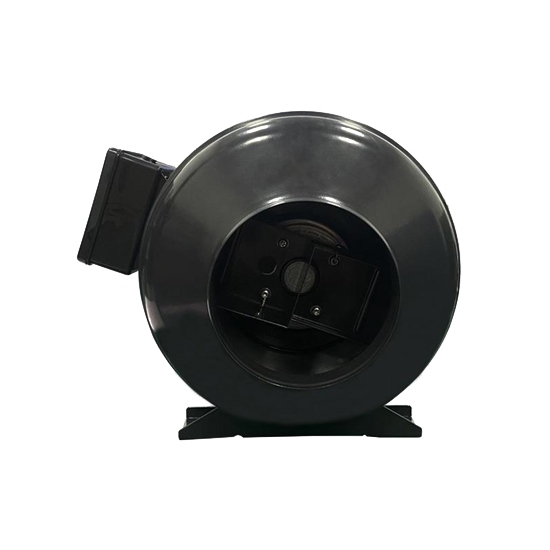

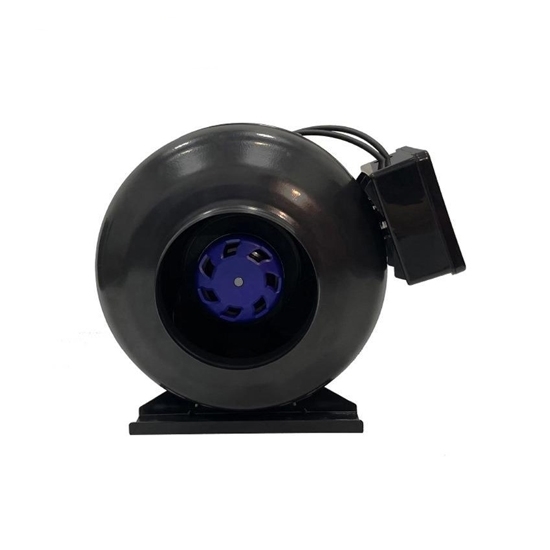

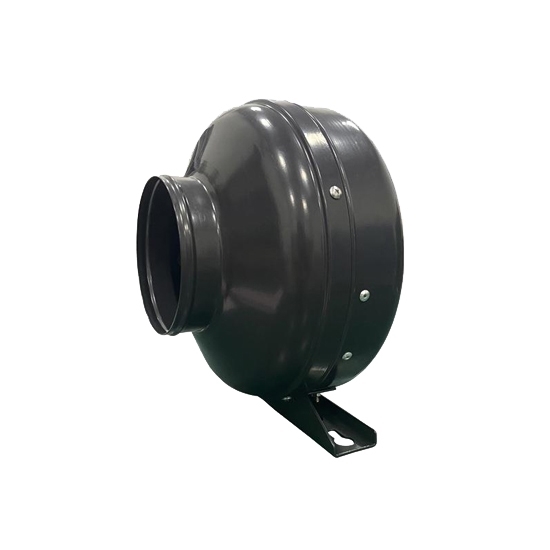

5 Inch (125mm) Inline Centrifugal Duct Fan

0 reviews • Write a review

from

$463.69

Ex Tax: $463.69

Stock: In Stock
Model: RDDLZ-ICFAN-125
Weight: 1.00
SKU: RDDLZ-ICFAN-125

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Favorable price 5 inch (125mm) inline centrifugal duct fan is a ventilation blower commonly used in residential, commercial, and industrial applications. Designed to be installed within ductwork, this in line centrifugal fan efficiently moves air through the system, improving air circulation and quality.

Specification

Model	RDDLZ-QL-P125B-EC-00
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	85W
Motor Power	85W
Max. Current	0.65A
Noise	69dB(A)
Speed	3400rpm
Impeller Diameter	125mm (5 inch)
Air Volume	370m³/h (220 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Plastic
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Tips: What size space is an inline centrifugal duct fan suitable for?

An inline centrifugal duct fan is suitable for a range of spaces, from small residential areas to large commercial and industrial environments. The appropriate fan size depends on several factors, including the space’s volume, airflow requirements, and the length and configuration of the ductwork.

For residential applications, inline centrifugal fans can effectively ventilate areas such as bathrooms, kitchens, or small living spaces. In these cases, fans with lower airflow capacities (typically between 100 to 500 CFM) are adequate.

In commercial and industrial settings, where larger volumes and more complex duct systems are involved, higher-capacity fans (ranging from 500 to 3,000 CFM or more) are required to ensure efficient air distribution. Proper sizing is crucial to achieving effective ventilation and maintaining indoor air quality, so it's important to consult with a ventilation expert to match the fan’s specifications with the space’s needs.
