5 Digit Load Cell Display Controller, 2 Realy Output

0 reviews • Write a review

from

$120.66

Ex Tax: $120.66

Stock: In Stock
Model: RDDLZ-DPM-TY5DA3
Weight: 1.00
SKU: RDDLZ-DPM-TY5DA3

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

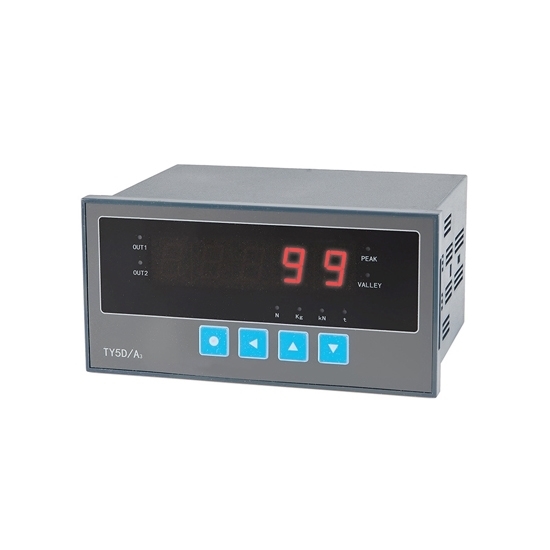

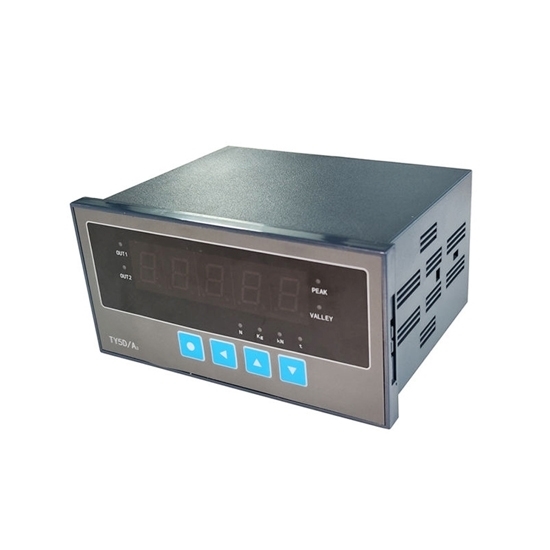

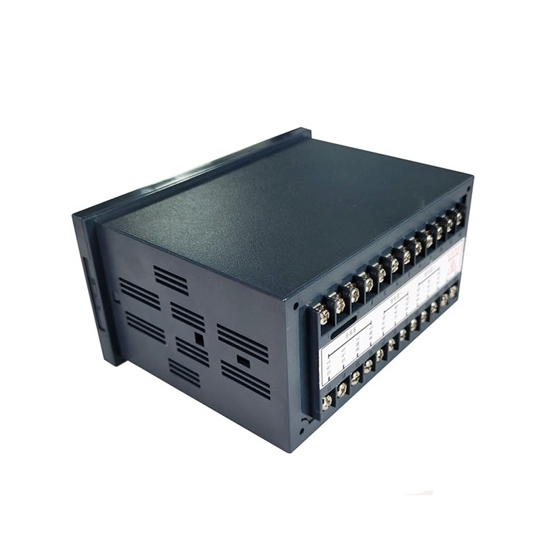

Buy a 5 digit display controller for load cell sensors. It is a digital panel meter with 100V~240V AC power supply, 1~4 channels of ±20mV signal input, 2-way relay signal output, and 4 measurement switching units ( N, kN, kg, and T).

Features:

5 Digital load cell display controller offers high precision and stable performance, with easy operation, making it suitable for various applications.
This load cell digital panel meter features a dual LED display, supports 1-4 load cell signal inputs, has peak and valley hold functions, and has zero-clearing capability, making it ideal for automated batch control.

Specifications

Model: RDDLZ-TY5DA3
Power Supply: 100-240V AC (Default) or 24V DC (Contact Us)
Working Environment: 0~50℃ 90% R.H without Dew
Digital Display: 5 Red LED Display
Indication Range: -19999~99999, Overload Display O.L
Display Scale Division: 1, 2, 5
Weighing Functions: Zero, Zero Tracking, Auto-Zero at Power
Excitation: 5V, 200mA
Input Signal: ±20mV
Sampling Rate: 10 times/sec
Dimension: 160x80x125mm
Function: 2 Ways Relay

Suitable Load Cells

SKU	Capacity Range
RDDLZ-LC-S01	5 kg~20 ton
RDDLZ-LC-S05	100 kg~20 ton
RDDLZ-LC-TC03	300 kg~30 ton
RDDLZ-LC-TC04	2 ton~100 ton
RDDLZ-LC-TC05	10 ton~200 ton
RDDLZ-LC-C01	20 ton~200 ton
RDDLZ-LC-P01	300kg~100 ton
RDDLZ-LC-P02	500 kg~200 ton
RDDLZ-LC-B02	200 kg~10 ton
RDDLZ-LC-SB01	10 ton~50 ton
RDDLZ-LC-SB02	1 ton~30 ton

Tips: Why does the load cell need a 5-digit display controller?

High Precision: A 5-digit display provides accurate readings, capturing even small variations in weight or force.
Wide Measurement Range: It accommodates larger values while maintaining detail and accuracy across different applications.
Increased Resolution: The higher resolution allows for finer increments, ensuring more detailed and precise measurements.
