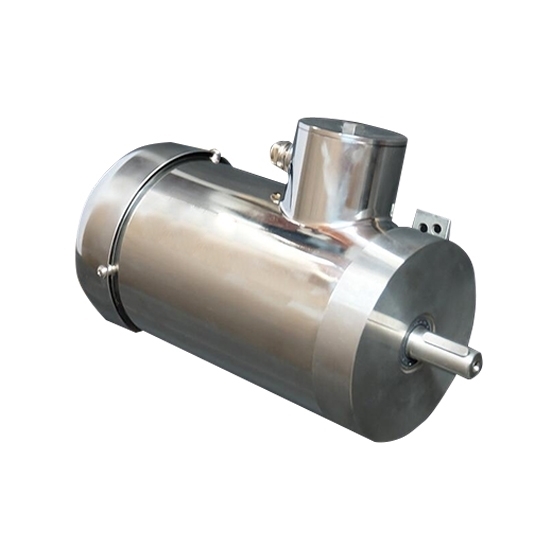

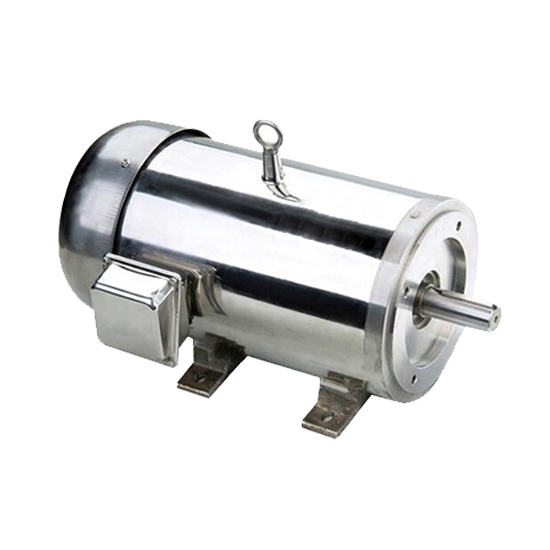

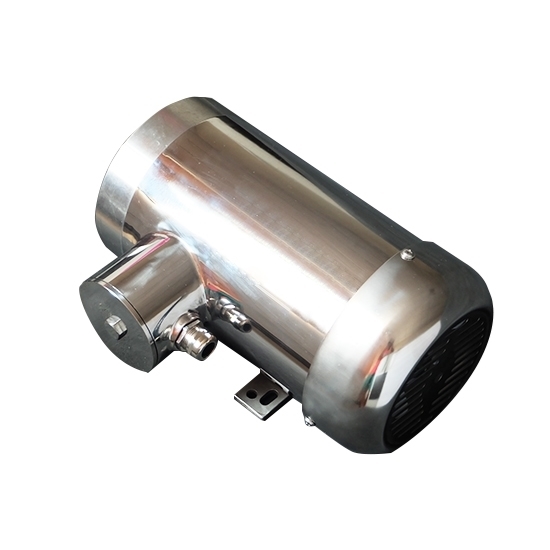

5.5hp (4kW) Stainless Steel Motor, 3 Phase, B3/ B5/ B14

0 reviews • Write a review

from

$2,797.92

Ex Tax: $2,797.92

Stock: In Stock
Model: RDDLZ-IEC-112M
Weight: 1.00
SKU: RDDLZ-IEC-112M

Available Options

Voltage

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost stainless steel electric motors with rated power 5.5hp, 2950r/ min speed, IE 4 efficiency. It is widely used in fields with high hygiene requirements such as food, chemical industry, medical equipment, etc.

Features

Smooth stainless steel enclosures easy to clean and sanitize.
IP65 for water protection rating ensures suitability for clean in place washdown procedures.
Encapsulated windings prevent any water and moisture from reaching the windings.
Low surface temperature with less operation costs due to high efficiency.

Specification

Model	RDDLZ-IEC-112M
Rated power	5.5hp (4kW)
Rated voltage	208V~230V/ 460V
Number of pole	2P
Phase	3 phase
Cooling method	TEFC
Frequency	50/ 60Hz
Raged speed	2950r/min
Mounting type	B3/ B5/ B14
Stainless steel	304
Protection grade	IP65
Insulation class	Class F
Protect Feature	Waterproof
Efficiency	IE 4
Weight	67kg
Certificate	CE, UL
Warranty	12 months

Dimension

Mounting type	Frame size	Mounting dimensions (mm)
Mounting type	Frame size	A	A/2	B	C	D	E	F	G	H	K	M	N	P	R	S	T	Flange Hole	Shaft Hole	AB	AC	AD
B3	112	140	70	125	56	24	50	8	20	90	9	-	-	164		-	-	-	M8	164	176	147
B14		-	-	-	-	24	50	8	20	-	-	115	95	140	0	M8	3	4	M8	-	176	147
B5		-	-	-	-	24	50	8	20	-	-	165	130	200	0	12	3.5	4	M8	-	176	147

Details

Tips: Types of Protection of Stainless Steel Motor.

Overcurrent protection:
Overcurrent means that the working current of the motor exceeds its rated value. If it takes a long time, it will overheat the motor and damage the motor, so protective measures need to be taken.
When overcurrent, the current still flows through the normal path, and its value is smaller than the short-circuit current value. Overcurrent is generally due to excessive load or incorrect startup. In order to avoid affecting the normal operation of the motor, the overcurrent protection action value should be slightly larger than the normal starting current.
Overcurrent protection also requires the protection device to be able to act instantaneously. Overcurrent protection generally uses overcurrent relays.
