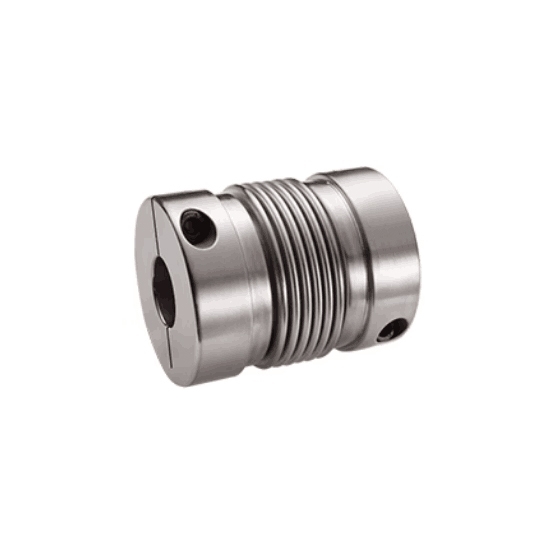

5-10mm Stainless Steel Bellows Coupling

0 reviews • Write a review

from

$92.68

Ex Tax: $92.68

Stock: In Stock
Model: RDDLZ-BC-510
Weight: 1.00
SKU: RDDLZ-BC-510

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price stainless steel bellows coupling shaft diameter comes with a size of 5 to 10mm, outer diameter of 20mm, and length of 32mm. This flexible coupling is simple in construction, easy to machine and install, and provides excellent performance and reliability even in the most demanding applications.

Specification

Model	RDDLZ-GRCG-20x32
Rated Torque	2.2 Nm
Allowable Eccentricity	0.15mm
Allowable Deflection	1.5°
Allowable Axial Misalignment	+0.3-1
Allowable Speed	7600 rpm
Static Torsional Stiffness	220 Nm/rad
Moment of Inertia	2.2x10-6
Weight	36g

Dimension (unit: mm)

d1/d2	ΦD	L	L1	L2	L3	ΦN	F	M	Tightening Torque
5-6-6.35-7-8-9-9.525-10	20	32	7.2	2.8	2	6.5	3.5	M3	1.5 Nm

Keyway Machining Dimensions Comparison Table

Shaft Size	Keyway Standard Processing Size				Keyway Size
d1/d2	b		t		bxh
d1/d2	Slot Width	Tolerance	Grooving Depth	Tolerance	bxh
φ6-φ7.9	2	±0.0125	1	±0.10	2x2
φ8-φ10	3	±0.0150	1.4		3x3
φ10.1-φ12	4		1.8		4x4
φ12.1-φ17	5		2.3		5x5
φ17.1-φ22	6	±0.0180	2.8		6x6
φ22.1-φ30	8	±0.0180	3.3	±0.20	8x8
φ30.1-φ38	10	±0.0215	3.3		10x10
φ38.1-φ44	12		3.8		12x12
φ44.1-φ50	14		4.3		14x14
φ50.1-φ58	16		4.4		16x16
φ58.1-φ65	18		4.4		18x18

Applications

Bellows couplings are commonly used in robotics, medical equipment, semiconductor manufacturing, and aerospace industries. Bellows couplings can transmit torque and rotational motion while compensating for misalignments, which makes them ideal for applications where high accuracy and repeatability are critical.

Tips: What are the materials typically used in the manufacturing of bellows couplings?

Bellows couplings are typically made of materials that are both strong and flexible, as they are designed to transfer torque between two rotating shafts while compensating for any misalignment. Some of the most commonly used materials for manufacturing bellows couplings include:

Stainless steel: Stainless steel is a popular choice for bellows couplings due to its high strength, durability, and corrosion resistance. It is also
able to withstand high temperatures, making it suitable for use in a wide range of industrial applications.
Titanium: Titanium is another popular material for bellows couplings due to its high strength-to-weight ratio and excellent corrosion resistance. It is also biocompatible, making it ideal for use in medical and dental applications.
Inconel: Inconel is a nickel-based alloy that is known for its high temperature resistance and excellent corrosion resistance in harsh environments. It is often used in aerospace and industrial applications.
Aluminum: Aluminum is a lightweight material that is often used in bellows couplings for applications that require high-speed rotation. It is also corrosion-resistant, making it suitable for use in humid or corrosive environments.
Brass: Brass is a copper-based alloy that is often used in bellows couplings for its excellent thermal conductivity and corrosion resistance. It is also easily machinable, making it a cost-effective option for many applications.
