4000W 190KV 4-13S Outrunner Brushless Motor For Skateboard

0 reviews • Write a review

from

$319.62

Ex Tax: $319.62

Stock: In Stock
Model: RDDLZ-BLDC-6384
Weight: 1.00
SKU: RDDLZ-BLDC-6384

Available Options

With ESC Controller

Shaft Diameter

With Pulley

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

190KV outrunner brushless DC motor for electric skateboard/longboard/mountainboard. Maximum power 4kW, input voltage 4-13S (DC 14-48V), max current 95Amps. Combined with BLDC motor ESC driver for better speed control.

Specification

Model	RDDLZ-BLDC-6384
Max Power	4000W (5 hp)
Rotation Speed KV (RPM/V)	190KV
Max Current	95A
Max Input Voltage*	DC 14-48V
Rated Torque	3.5 N.m
Max Torque	9 N.m
Recommend ESC	FSESC6.6 60A (3S-12S)
Motor Length	84mm
Motor Diameter	63mm
Weight	1000g
Motor Resistance	0.05 ohm
SHAFT	Diameter: 8mm, 10mm Length: 30mm, 25mm keyway slot: 3314mm
Motor Wire	12AWG wire with 4.0mm Gold Bullet Connector Male.customizable 5.5mm gold plated connector
Wire Configuration	Blue = A Black = B Yellow = C
Stator	0.2mm thickness lamination japan steel
Magnet	N42SH high temp curve magnet
Number of poles	14
Sensor Wire	Standard RC Sensor Wire JST-ZH 6pin 1.5mm/2mm pitch

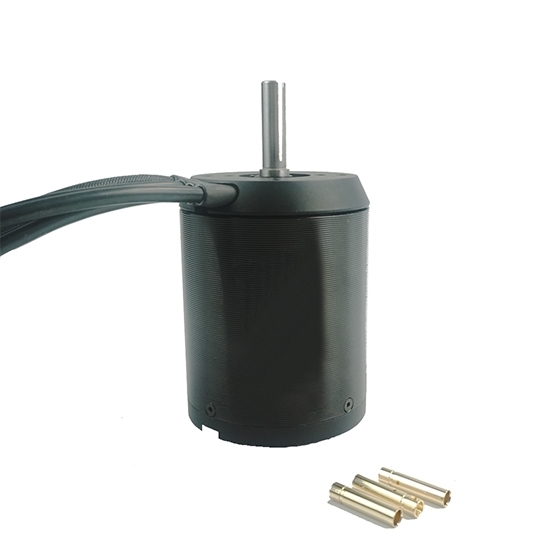

Shipping Package	RDDLZ-6384 motor1, banana head 4.0mm female head3

*Note: The motor is powered by 4-13S batteries, S is the number of batteries, voltage of every battery is 3.7V DC.

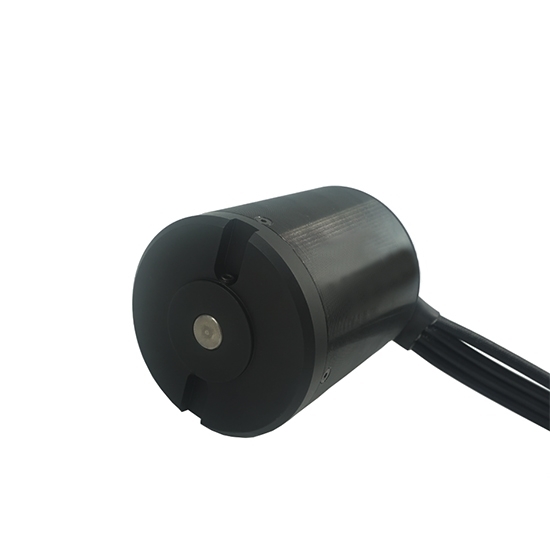

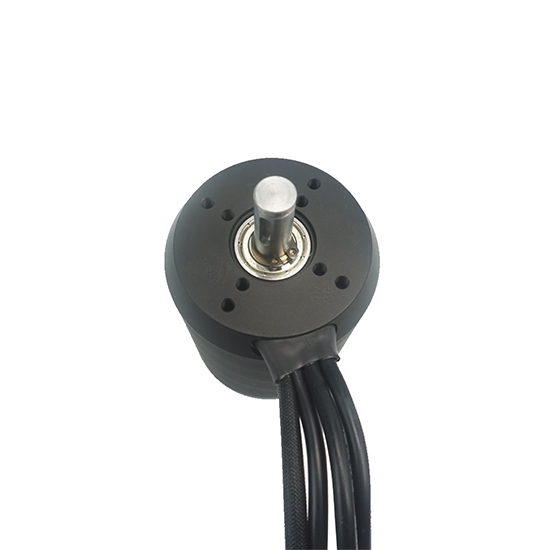

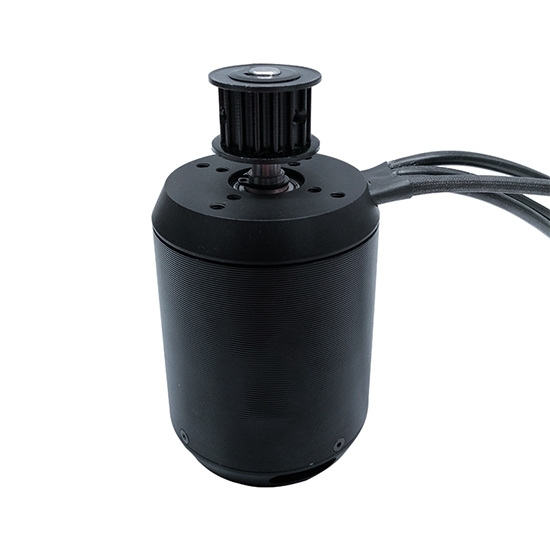

4000W Outrunner Brushless DC Motor Details

8mm Shaft Brushless DC Motor Dimensions Drawing (Unit: mm)

10mm Shaft Brushless DC Motor Dimensions Drawing (Unit: mm)

ESC (Electronic Speed Controller) Selection for E-Board BLDC Motor

The speed of BLDC motor does not exceed the speed of ESC, it can be matched and used.
Brushless DC motor speed calculation formula: battery voltage * motor KV value.
Brushless DC motor stator speed calculation formula: motor KV value * battery voltage * motor pole pairs.
The limit speed of V4 series ESC is 60000 ERPM.
The limit speed of V6 series ESC is 15000 OERPM.
If the maximum speed of BLDC motor exceeds the speed of electric speed controller, the ESC can also be matched by reducing the working voltage of motor. But we do not recommend this, because it does not really play the role of brushless DC motor.

ESC (Electronic Speed Controller) Specification

Model	Current Value	Number of Batteries (Input Voltage)
FSESC 4.12	Continuous 50A, peak 240A	3S-12S (8V-60V)
FSESC 4.20	Continuous 50A, peak 240A	3S-12S (8V-60V)
VESC 6.6 mini dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
VESC6.6 integrated switch dual drive version	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
FSESC6.6 VESC6.6 single drive integration*	Continuous 60A, peak 150A	3S-12S (8V-60V)
VESC4 dual drive integration	50A continuous 1-channel, peak 100A 2-channel, peak 300A 2-channel	3S-12S (8V-60V)
ODESC3.6 single drive/dual drive	50A continuous 1-channel, peak 120A 1-channel	3S-12S (8V-60V)
VESC6 dual drive	1-channel 100A continuous, 2-channel 200A continuous 1-channel peak 400A, 2-channel total peak 800A	3S-12S (8V-60V)
Single drive V6 75200	Continuous 200A	3S-12S (8V-60V)
Single drive VESC6 waterproof version	Continuous 60A, peak 150A	3S-12S (8V-60V)

*Note: The ESC model with * is the recommended controller for this page of motor, if you need other ESC models, please contact us.

Tips: Why does electric skateboard use a brushless motor?

The reason why the brushless DC motor is widely used in electric skateboard is that it has the following two advantages, compared with the traditional brushed DC motor.

Brushless DC motor has long life, maintenance-free and high reliability. In a brushed DC motor, due to the high motor speed, brushes and commutator wear quickly. Generally, brushes need to be replaced after 1000 hours of operation. In addition, the reduction gearbox is technically difficult, especially the lubrication problem of transmission gear, which is a relatively big problem in the current brush scheme. Therefore, the brush motor has problems such as high noise, low efficiency, and easy failure. Therefore, the advantages of BLDC motors are obvious.
Brushless DC motor has high efficiency and energy saving. Generally speaking, because BLDC motor has no mechanical commutation friction loss, gear box consumption, and speed control circuit loss, the efficiency can usually be higher than 85%. However, considering the high cost performance in the actual design, in order to reduce material consumption, the general design is 76%. The efficiency of brushed DC motors is usually around 70% due to the consumption of gearboxes and overrunning clutches.
