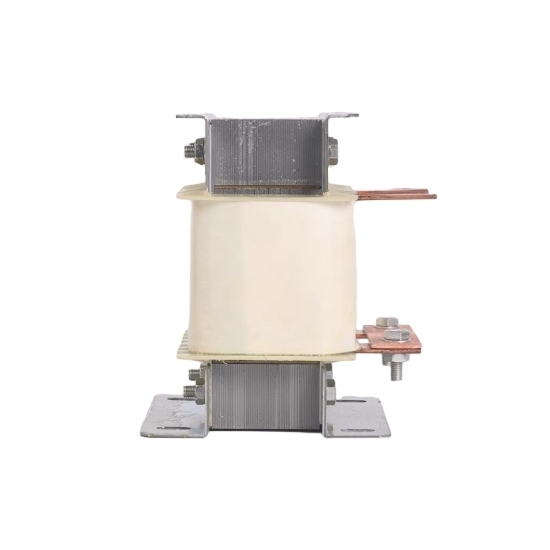

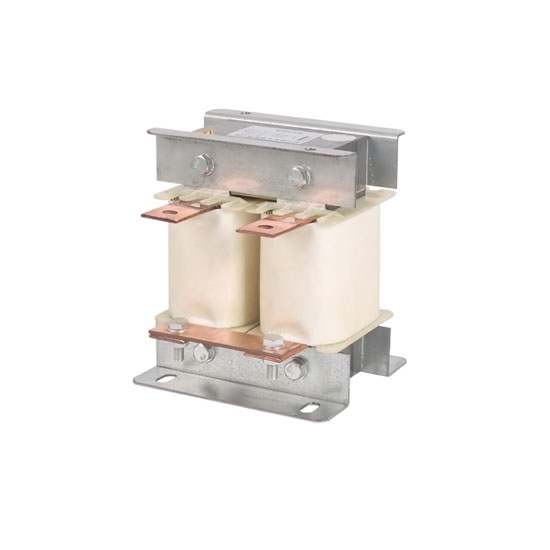

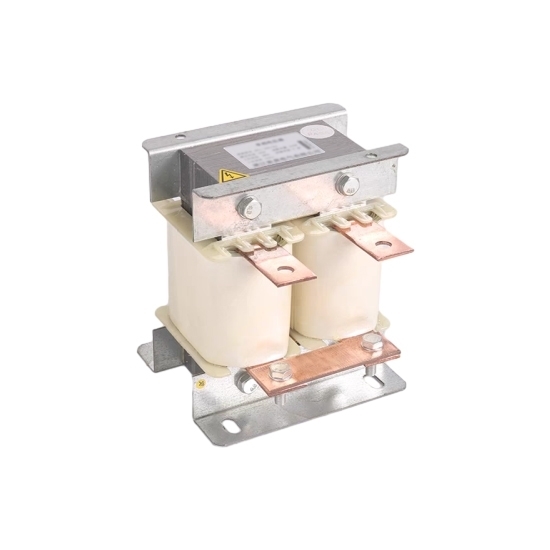

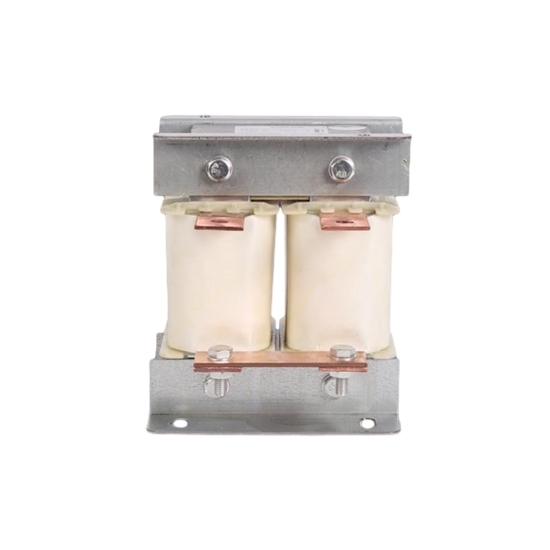

40 Hp (30 KW) DC Reactor, Single Phase

40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
40 Hp (30 KW) DC Reactor, Single Phase
0 reviews • Write a review
from
$317.69
Ex Tax: $317.69
  • Stock: In Stock
  • Model: RDDLZ-DCL-40
  • Weight: 1.00
  • SKU: RDDLZ-DCL-40

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC line reactor for vfd, 40 hp (30 kW), dc output voltage 220V, 380V and 400V areavailable, effectively improve the power factor and reduce the AC pulse of the DC bus.

Specification:

ModelRDDLZ-DCL-80
Phase1 Phase
Power Adapter30 kW (40 hp)
VFD Voltage Adapter220V-1200V (Contact us for other voltages)
Rated Current80A
Inductance0.395
Insulation GradeF.H
Dimension132*125*140mm (L*W*H)
Mounting Dimension110*75mm
Electric StrengthIron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistanceiron core-winding 1000VDC, Insulation resistance
≥100MV
Noise of ReactorLess than 35dB (measured from 1 meter away in horizon from reactor)
Degree of ProtectionIP00
Degree of Insulation> Class F
Weight10.5kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details


Tips: Starting reactor function

AC asynchronous motors have a large starting current, which is 5-7 times the rated current. Therefore, when a large motor is started, it will cause a large voltage drop on the power grid and have a greater impact on the line's electrical equipment. The voltage reduction method is usually used to limit the starting current of the motor. Reactors can be started in series on the motor's line in the case of reduced voltage starting. Generally, the power of the matched motor is 220KW-4800KW.
