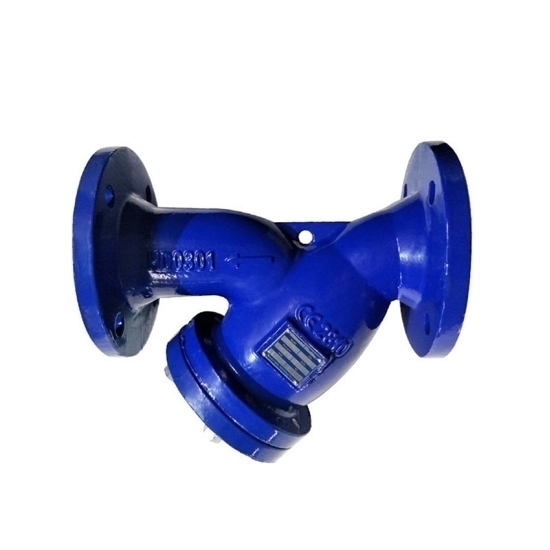

4 Inch Cast Iron Y Strainer

4 Inch Cast Iron Y Strainer
4 Inch Cast Iron Y Strainer
0 reviews • Write a review
from
$318.46
Ex Tax: $318.46
  • Stock: In Stock
  • Model: RDDLZ-YTS-100
  • Weight: 1.00
  • SKU: RDDLZ-YTS-100

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

Ductile iron 4 inch Y strainer filter features PN16 working pressure and flange connection. 100mm wye strainer is easy to install and use, can effectively remove unwanted particles and debris from fluid systems.

Specifications

  • Model: RDDLZ-GL41H-16Q
  • Type: Y Type Strainer
  • Size: 4 inch (DN100, 100mm)
  • Connection Method: Flange Connection
  • Material: Ductile Cast Iron
  • Pressure: PN16
  • Applicable Temperature: -10~200℃
  • Suitable Medium: Water, oil etc.
  • Design and Manufacture: GB/T 14382
  • Pressure Test: GB/T 14382
  • Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

DNINCHLφAφBφC
DN1004350215180155


Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Brass vs. Ductile Iron Y-type Strainer

  • Material Strength: Ductile iron is stronger and more durable, making it suitable for high-pressure and heavy-duty applications, whereas brass is less strong but offers better corrosion resistance for less demanding environments.
  • Corrosion Resistance: Brass has superior corrosion resistance, especially in water and chemical environments, while ductile iron may require additional coating to resist corrosion effectively.
