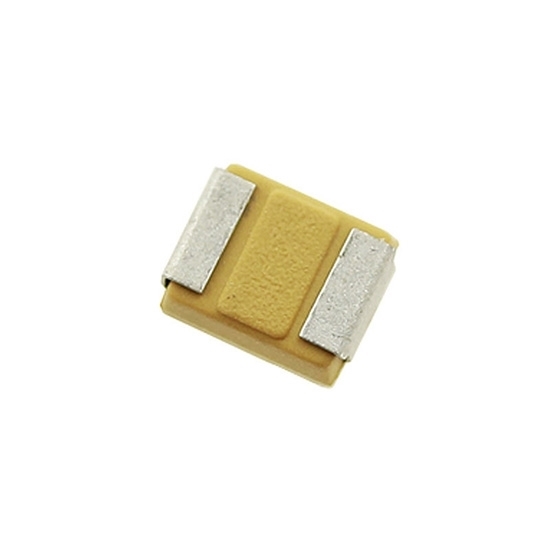

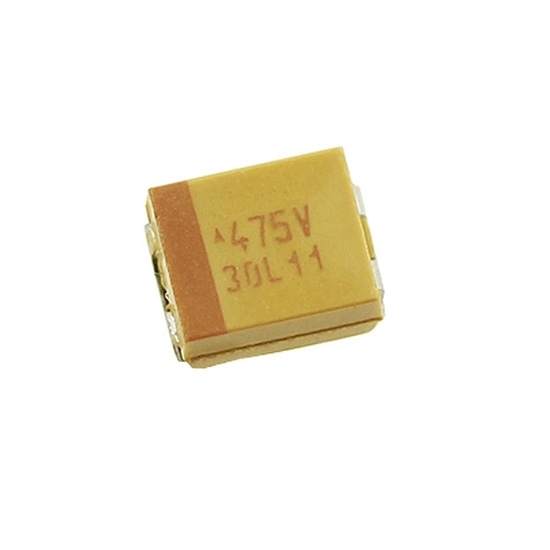

RDDLZ provides high quality and good price 35V SMD tantalum capacitor. Chip tantalum capacitor is a subtype of electrolytic capacitor. The tolerance of 35V surface mount tantalum capacitor is small, about 10%.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Capacitance: 4.7μF
• Rated Voltage: 35V
• Type: B-SMD
• Net Size: 1 mm
• Height Mounting (Maximum): 1 mm
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Leading Spacing: Leadless
• Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 3.5, S= 0.8, W₁= 2.8, W₂= 2.2, H= 1.9

Tips: Tantalum Capacitor vs. Electrolytic Capacitor

• Definition. Tantalum capacitors are a type of electrolyticcapacitors that acts as apassive component of electronic circuits. Electrolytic capacitors are polarized capacitorshaving an anode or apositive plate made of ametal that can form anoxide layer through anodizing.
• Uses. Tantalum capacitors use in sample andhold circuits in order toachieve a long holdduration, as an alternativefor aluminum electrolyticcapacitors in solutions. inpower supply filtering oncomputer motherboardsand peripherals, etc. Electrolytic capacitors often used for filtering and bypassing.
• Activity. Tantalum capacitors use a sintered pellet ofhigh purity tantalumpowder along withtantalum pentoxide asthe dielectric component. Electrolytic capacitors contain an anode orapositive plate made of ametal that can form an oxide layer through anodizing. Filtering performance of tantalum capacitors.
