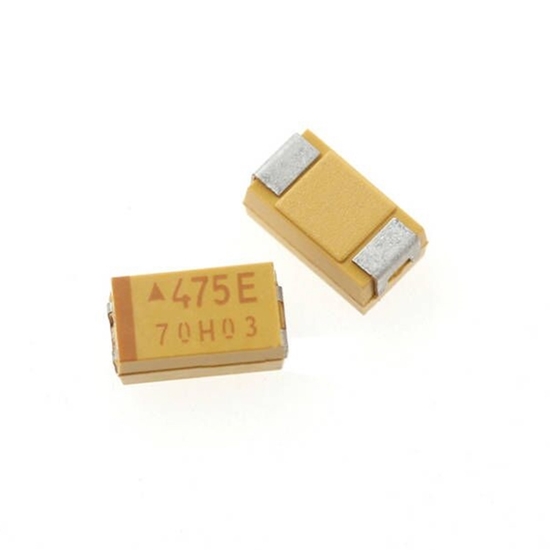

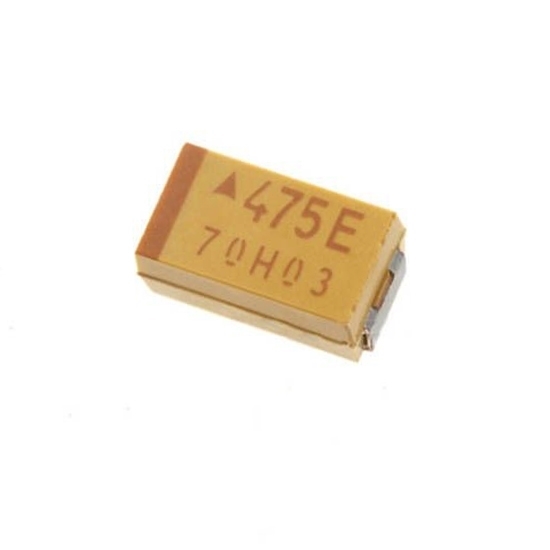

4.7μF 25V SMD Tantalum Capacitor

0 reviews • Write a review

from

$1.82

Ex Tax: $1.82

Stock: In Stock
Model: RDDLZ-TC-047UF25SMD
Weight: 1.00
SKU: RDDLZ-TC-047UF25SMD

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25V SMD Tantalum capacitor with small volume and small error can be provided by RDDLZ. Surface mount tantalum capacitor can operate in -85 ℃ to 125 ℃. Tantalum chip capacitor widely used in pressure gauge, industrial equipment and video equipment.

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Capacitance: 4.7μF
Rated Voltage: 25V
Type: C-SMD
Net Size: 6 mm
Height Mounting (Maximum): 3.2 mm
Equivalent Series Resistance: 1
Tolerance: 10%
Leading Spacing: Leadless
Working Temperature: -85 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 6, S= 1.3, W₁= 3.2, W₂= 2.2, H= 2.5

Tips: Why Use Tantalum Capacitor?

The tantalum capacitor also has excellent stability characteristics. Across a wide range of temperatures and frequencies, the tantalum capacitor will maintain the expected capacitance better. With this stability you get more of the expected behavior of your system, which is especially important for filters; if the capacitance varies too much you may lose frequencies you desire. Beyond the electrical differences the construction of the tantalum capacitor also makes it highly resistant to vibration issues, improving overall system reliability. Tantalum capacitors are generally polarized devices, meaning that during layout and assembly you need to pay more attention to their orientation.
