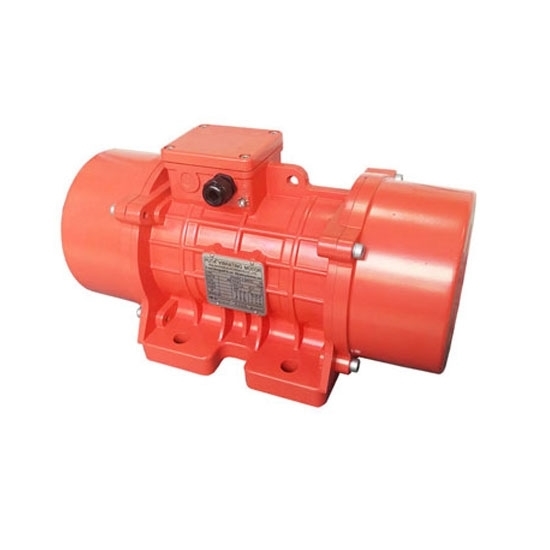

370W (0.5 Hp) 3 Phase AC Vibration Electric Motor, 220V/380V

0 reviews • Write a review

from

$921.87

Ex Tax: $921.87

Stock: In Stock
Model: RDDLZ-AVM-MVE70015
Weight: 1.00
SKU: RDDLZ-AVM-MVE70015

Available Options

Short Description

Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

220V/380V AC three phase vibration electric motor adopts high-quality bearings to ensure the smooth operation of the vibrating motor and comes with 1440 rpm speed, 693kg force, 4 pole, IP65 waterproof, CE certificate, and 50Hz frequency, ideal for industrial use.

Specifications

Model	RDDLZ-MVE70015
Phase	3 Phase
Pole	4 Pole
Force	693 Kg, 7 kN
Speed	1440 rpm
Power	370W (0.37kW, 0.5 hp)
Current	1.32A
Voltage Class	3 Phase 220V 50Hz/380V 50Hz
Weight	28.0 kg
Frame No.	50
Frequency	50 Hz/60 Hz
Protection Rank	IP65
Insulation Class	F
Certificate	CE
Warranty	12 Months

Dimension (Unit: mm)

A	B	C	D	E	F	G	H	I	L	M	N	Cable Gland
120	170	391	208	210	22	17	94	180	205	93	170	M20*1.5

Internal Structure

Applications

RDDLZ 370W (0.5 hp) 220V/380V AC 3 phase micro vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: How to choose an industrial vibration electric motor?

Choosing the right industrial vibration electric motor involves assessing factors such as the required vibration force, motor type (single-phase or three-phase), and the environmental conditions where the motor will operate. It's important to consider the frequency, amplitude, and power requirements based on the application, as well as factors like efficiency, noise levels, and safety features. Additionally, ensure the motor has the appropriate mounting options, is built for durability, and is cost-effective with minimal maintenance needs. By carefully evaluating these factors, you can select a vibration motor that offers optimal performance, reliability, and longevity for your industrial processes.
