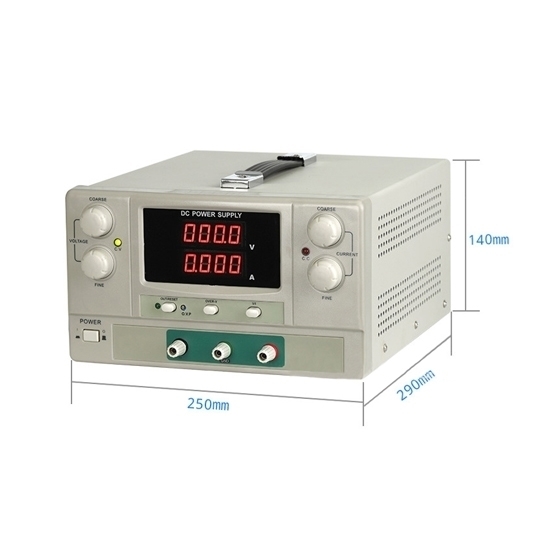

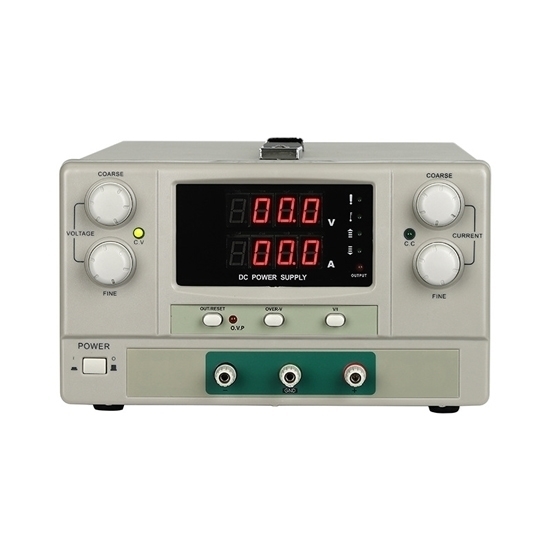

30A 30V 900W Variable Linear DC Power Supply

0 reviews • Write a review

from

$889.69

Ex Tax: $889.69

Stock: In Stock
Model: RDDLZ-DCPS3030
Weight: 1.00
SKU: RDDLZ-DCPS3030

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

30 volt 30 amp variable linear DC power supply provides an adjustable and regulated power source, allowing users to tailor voltage and current outputs to meet specific electronic device requirements. With digital control features, it offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.

Specification

Model	RDDLZ-JK3030S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-30V
Output Current Range	0-30A
Output Power	900W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	100mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-4+8mV
Line Regulation (CV)	1×10^-4+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-4+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	303 (L) x 255 (W) x 155 (H) mm
Weight	17kg

Detail

Tips: Can I use a variable linear DC power supply for circuit prototyping?

Yes, a variable linear DC power supply is suitable for circuit prototyping. It provides a stable and adjustable DC voltage output, allowing you to test and experiment with different voltage requirements for your circuits. The variable feature is particularly useful as it enables you to simulate various operating conditions. Linear power supplies offer low noise and good regulation, making them suitable for sensitive electronic components. Additionally, they are often preferred for prototyping because of their simplicity and reliability. Ensure that the power supply's voltage and current specifications meet the requirements of your circuits, and always start with lower values when testing to prevent damage. Overall, a variable linear DC power supply is a valuable tool for efficient and controlled circuit development.
