30 KVA Isolation Transformer, 3 Phase, 480 Volt To 415 Volt

0 reviews • Write a review

from

$5,129.37

Ex Tax: $5,129.37

Stock: In Stock
Model: RDDLZ-T-SG30KVA
Weight: 1.00
SKU: RDDLZ-T-SG30KVA

Available Options

Winding Material

Primary Voltage (AC)

Transformer Type

With Movable Wheels

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

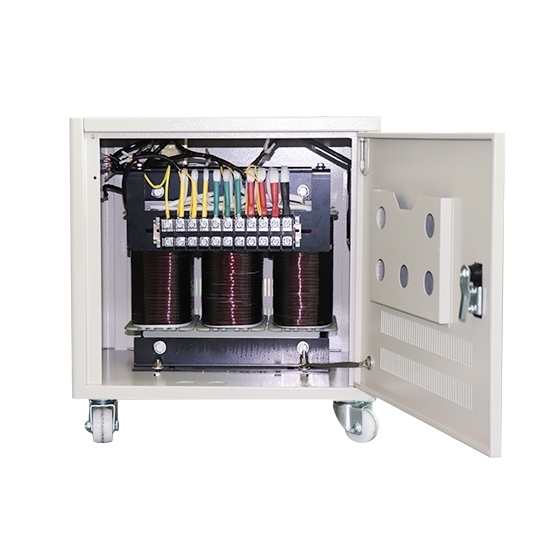

3 Phase Isolation Transformer Details

30 kVA Isolation Transformer Installation Dimension

Aluminium Wire Transformer Size				Copper Wire Transformer Size
Open type: abc=440350430mm				Open type: abc=440340420mm
Mouting size: de=300205mm				Mouting size: de=300195mm
Protected type: ABC=420610610mm				Protected type: ABC=420610610mm

Tips: Characteristics of RDDLZ isolation transformer at the AC power input

If the third harmonic and interference signal of the Grid is severe, use isolation transformer to remove the third harmonic and reduce the interference signal.
The use of isolation transformers can generate a new neutral line to avoid the abnormal operation of equipment caused by unfit neutral power line.
The current waveform distortion(such as third harmonic) caused by nonlinear load can be isolated without affecting the Grid.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Basics	Model	RDDLZ-SG30KVA
	Phase	3 phase
	Capacity	30 kVA
	Weight of Aluminium Wire Transformer	Open type: 160kg Protected type: 185kg
	Weight of Copper Wire Transformer	Open type: 160kg Protected type: 185kg
Technical Parameters	Primary Voltage	480V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Secondary Voltage	415V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Voltage Convert	Three phase to three phase
	Frequency	50Hz / 60 Hz
	Winding Material	Aluminium/Copper wire (Optional)
	Work Efficiency	≥95%
	Insulation Resistance	≥50 MΩ
	Electrical Strength	3000V AC/1 min
	Noise	<35-65dB (1 meter)
	Insulation Grade	H level
	Wiring Mode	Dyn11
	Cooling Mode	Dry type air cooling
	Overload Capacity	Allow more than 1.2 times rated load to work for up to 4 hours
	Enclosure Protection Grade	IP 24
	Certificate	CE, ISO
	Warranty	12 months
Working Environment	Temperature	-15℃~+40℃
	Humidity	≤90%RH, without condensation
	Altitude	<1000m, non corrosive gas and conductive dust

Aluminium Wire Transformer Size				Copper Wire Transformer Size
Open type: abc=440350430mm				Open type: abc=440340420mm
Mouting size: de=300205mm				Mouting size: de=300195mm
Protected type: ABC=420610610mm				Protected type: ABC=420610610mm
