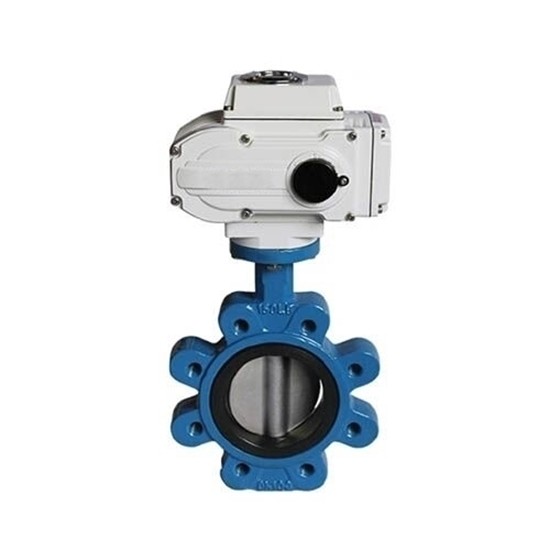

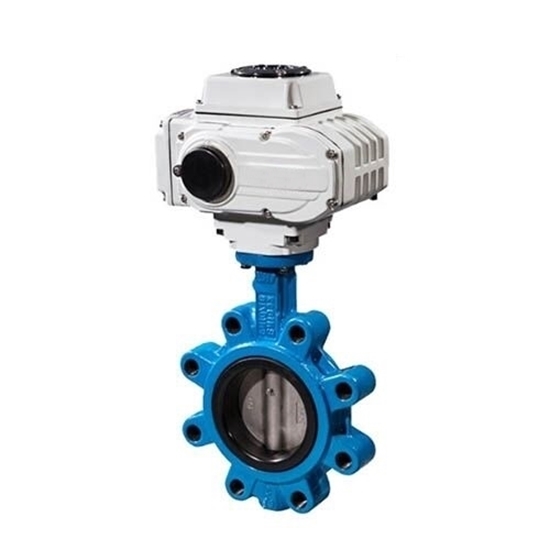

3" Electric Lug Type Butterfly Valve

0 reviews • Write a review

from

$802.38

Ex Tax: $802.38

Stock: In Stock
Model: RDDLZ-HK60-DMS80-05
Weight: 1.00
SKU: RDDLZ-HK60-DMS80-05

Available Options

Power Supply

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Butterfly lug valve comes with 05 actuator and protection class IP65, works at -30°C~60°C. Great device to control air, water, steam these flow.

Electuator Specification

Model	RDDLZ-HK60-DMS80-05
Protection Class	IP65
Ambient Temp.	-30°C~60°C
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage Optional	AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Port Size	3" (DN80, 80mm)
05 Actuator Control Circuit	A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
Voltage	AC 220V	DC 24V	AC 380V
Torque Output	50Nm	60Nm	70Nm
90° Cycle Time	10S/20S/60S	8S	20S
Working Current	0.23A	0.38A	0.16A
Drive Motor	50W	9. 5W	51W

Body and Valve Specification

Body		Valve components
Corresponding Valve Port Size	3" (DN80, 80mm)	Seating Material	NBR, EPDM, VITON (Default PTFE)
Body Material	Cast iron	Disc Material	Stainless Steel
End Connection	Wafer Flange	Stem Material	Stainless Steel
Operating Pressure	< 1.6MPa	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam
Structure	Midline Structure/ A-type	Applicable Media	Control of Water, Air, Gas, Oil, Liquid, Steam

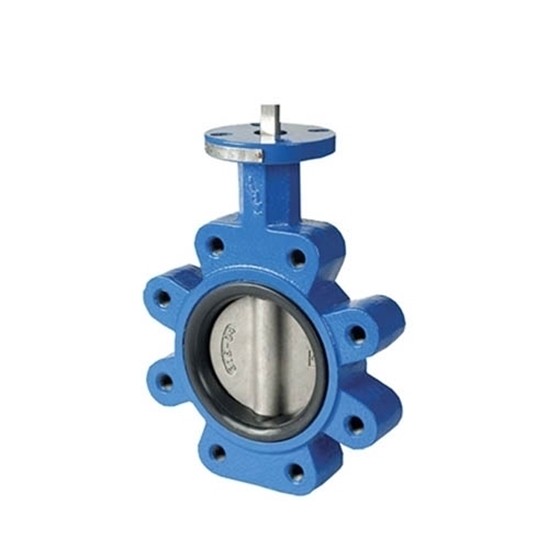

Butterfly Construction

Dimension	Inch	D	D1	D2	L	H	n-φd
DN80	3"	78.8 mm	127 mm	160 mm	45 mm	252 mm	8-M16 mm

Actuator Dimension (mm)

Details

Features

Remote controlled bf valve switch regulation and MODBUS, PROFIBUS Field Bus.
Body made of hard aluminum alloy, which is treated by hard anodic oxidization and coated by Polyester powder with great corrosion resistance.
Motor fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is F grade which can prevent motor over-heating.
Manual Override energy-saving of wafer type butterfly valve with lug type, used for manual operation when electricity is off. In automatic operation, it can be fixed inside the clip for easy operation.
Wafer butterfly valve indicator assembled on center axis, valve position can be observed. Outside mirror design facilitates position observation and prevents water drops accumulation.
Lug type butterfly valve high sealing performance, standard protection class is IP67.
Mechanical and electronic position limit switches, controlled by cam. Position set easily and accurately without any influence by handle.
Electric actuator valve with lug type, compact structure, miniature size, long service life, good sealing performance, easy maintenance, quick detachable and installation.
Explosion proof construction EXd II BT4.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf valve for home. If you have any questions, please feel free to contact us.

Tips: What is the ON/OFF type wafer butterfly valve function?

ON-OFF actuator has two actions (0ºor 90º] when performing valve operations.
The ON-OFF valve is generally used to switch off the two positions. There are two positions of full open and full closed. The function is to open or close to conduct and cut off the working medium inside.
There is no special requirement for the flow characteristics, but for the switching speed, the leakage requirement is higher than that of the regulating valve.
Optional voltage: AC 110V, AC 220V, AC 380V, DC 24V, AC 24V.
Optional Function: over torque protectors, dehumidify heater, stainless steel coupling, yoke.
