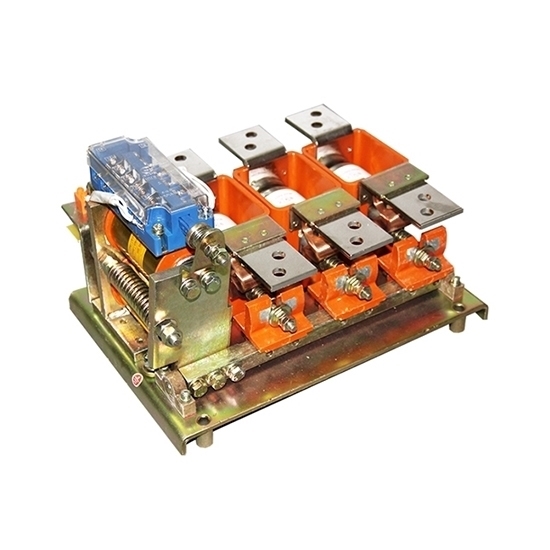

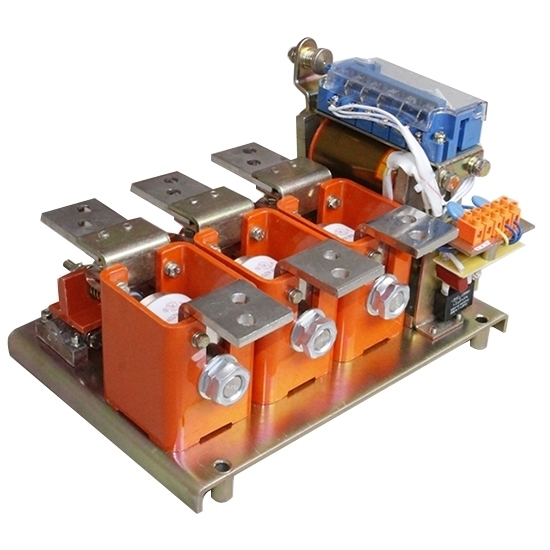

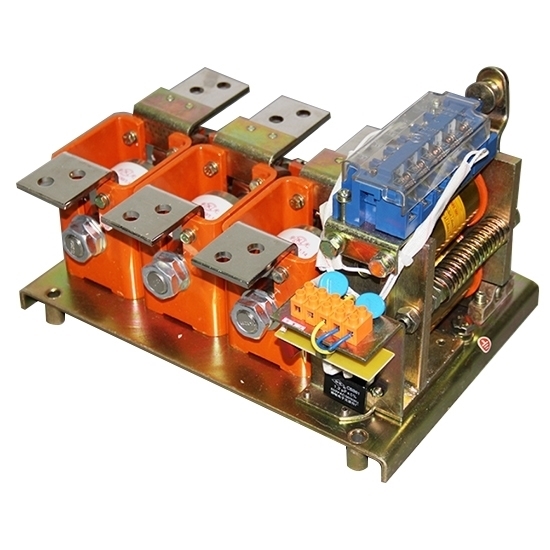

3 Phase AC Vacuum Contactor, 800A, 1140V

0 reviews • Write a review

from

$742.69

Ex Tax: $742.69

Stock: In Stock
Model: RDDLZ-VCON-800
Weight: 1.00
SKU: RDDLZ-VCON-800

Available Options

Control Circuit Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 800A, 1.14 kV ac vacuum contactor with 36/ 110/ 220/ 380 volt control coil from RDDLZ. We provide lower price and better quality.

Specification

Model		RDDLZ-CKJ5-800-1140
Rated voltage	Main circuit	1140V
	Control circuit (AC)	36V, 110V, 220V, 240V, 380V
Rated current		800A
Main contact parameter	Open distance	2±0.5 mm
	Over distance	＞1.5 mm
	Final power	190±20 N
Power frequency withstand voltage	Main circuit	4200V
	Auxiliary circuit	2500V
	Control circuit	2000V
Phase		3
Frequency		AC 50Hz or 60Hz
Making capacity		10 le 100 times
Breaking capacity		8 le 25 times
Max making & breaking capacity (A)		7200 3 times
Electric life	AC3	600000 times
	AC4	5000 times
Electrical life		3000000 times
Function		Device protection
Electricity type		Vacuum
Ambient temperature		-25℃ to 40℃
Packaging details		Standard package or according to customer's requirements
Weight		28kg

AC vacuum contactor outline and installation dimension (Unit: mm)

Tips: Inspection before installing vacuum AC contactor

Before installing the vacuum AC contactor, check whether the product nameplate and the technical data on the coil (such as rated current, voltage, operating frequency and continuity of power, etc.) meet the actual requirements.
To separate and close the movable part of the vacuum AC contactor by hand, the vacuum AC contactor is required to move flexibly without jamming.
Some vacuum AC contactors are coated with anti-rust oil on the pole surface of the iron core. The anti-rust oil on the pole surface of the iron core should be wiped clean during the period of use to prevent the sticky oil from causing the ac contactor to power off and not release.
Check and adjust the working parameters of the contactor's contact (such as open distance, overtravel, initial pressure, final pressure, etc.) and synchronize the actions of the contacts of each pole.
