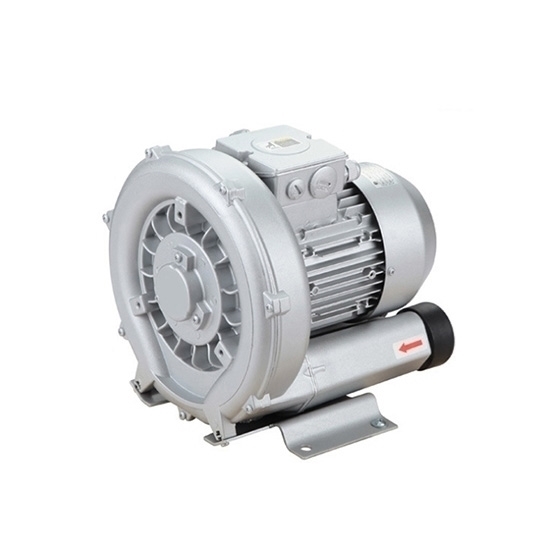

3 Phase 1 Hp (750W) Regenerative Blower, 380V, 85 Cfm

0 reviews • Write a review

from

$635.27

Ex Tax: $635.27

Stock: In Stock
Model: RDDLZ-RB-380-750
Weight: 1.00
SKU: RDDLZ-RB-380-750

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 750W 380 volt high-power vortex blower for industrial suction, aquaculture, textile industry, etc. The quality is good but the price is low.

Specification

Model	RDDLZ-2PB410H16
Phase	3
Frequency	50
Power	1 hp (750W)
Voltage (AC)	△220-240V / Y345-415V
Current	4.0△ A / 2.3Y A
Max airflow	145 m³/ h (85 cfm)
Rated vacuum pressure	-160 mbar
Rated compress pressure	160 mbar
Noise	63 dB (A)
Weight	20 kg

Dimention (Unit: mm)

ΦR

V (1~)

V' (1~)

V1 (3~)

V1' (3~)

YXZ

X-HOLES

ΦX

286

302

115

225

255

292

160

154

120

130

G1_1/4

M6X19

M25X1.5

M16X1.5

M6X15

0°/ 120°/ 240°

174

Details

Tips: High pressure regenerative blowers installation tips

Use flat washers and spring washers to tighten the screws.
It is best to use rubber buffer rubber to withstand the weight of high pressure blowers, especially for high power regenerative blowers, rubber buffer rubber is essential.
For some occasions that have requirements for noise, a silencer can be installed to reduce the noise (in general, it is reduced by about 5dB), and the silencer is installed at the end of the air inlet pipe or the air outlet pipe.
For some occasions with high requirements for noise, a layer of silencer sponge can be added according to the conditions of the high pressure regenerative blower itself to meet the noise requirements on site.
When using silencing foam, pay attention to the distance between the high pressure regenerative blower and the cabinet, and pay attention to the ventilation and heat dissipation of the high pressure vortex blower.
The inlet and outlet pipes of the high pressure blower should be connected with hoses to isolate vibration.
