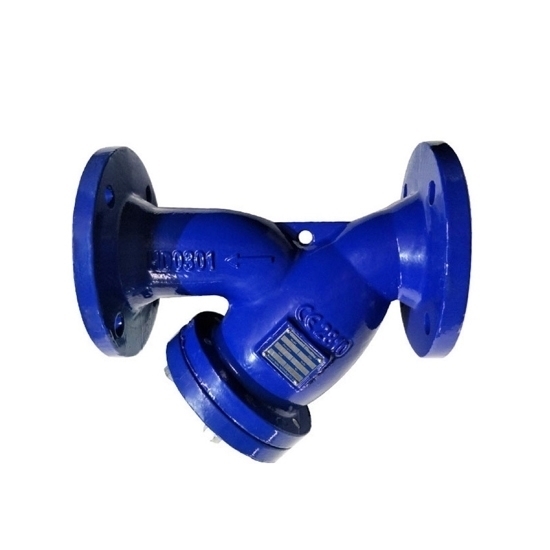

3 Inch Cast Iron Y Strainer

0 reviews • Write a review

from

$260.15

Ex Tax: $260.15

Stock: In Stock
Model: RDDLZ-YTS-80
Weight: 1.00
SKU: RDDLZ-YTS-80

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

Reliable 3 inch Y type strainer for sale online, available with DN80, working pressure PN16, cast iron material and flange connection. This y shaped strainer is ideal for chemical processing, agriculture and manufacturing.

Specifications

Model: RDDLZ-GL41H-16Q
Type: Y Type Strainer
Size: 3 inch (DN80, 80mm)
Connection Method: Flange Connection
Material: Ductile Cast Iron
Pressure: PN16
Applicable Temperature: -10~200℃
Suitable Medium: Water, oil etc.
Design and Manufacture: GB/T 14382
Pressure Test: GB/T 14382
Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

DN	INCH	L	φA	φB	φC
DN80	3	310	195	160	135

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Stainless Steel vs. Ductile Iron Y-type Strainer

Corrosion Resistance

Stainless Steel: Offers excellent corrosion resistance, making it suitable for environments exposed to chemicals, seawater, or other corrosive substances.
Ductile Iron: Has decent corrosion resistance, especially when coated, but it’s not as robust as stainless steel. It’s more suited for less aggressive environments.

Durability and Strength

Stainless Steel: Highly durable, withstanding high pressures, temperatures, and mechanical wear, leading to a longer lifespan.
Ductile Iron: Also strong and durable, with good tensile strength and flexibility, making it resistant to cracking under stress or impact. However, it’s not as durable as stainless steel in harsh environments.

Applications

Stainless Steel: Best for industries like food processing, pharmaceuticals, chemical processing, and marine applications where hygiene and corrosion resistance are critical.
Ductile Iron: Suitable for general industrial use, water systems, HVAC, and situations where cost is a significant factor and the environment is not highly corrosive.
