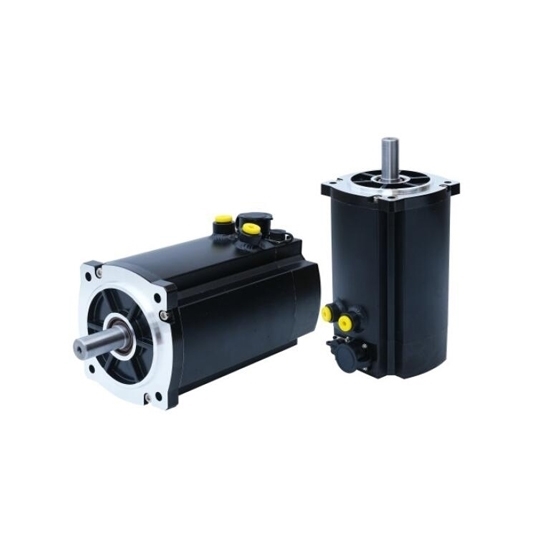

3.6 KW Servo Motor, Water Cooled, 380V, 11.5 Nm, 3000 Rpm

3.6 KW Servo Motor, Water Cooled, 380V, 11.5 Nm, 3000 Rpm
3.6 KW Servo Motor, Water Cooled, 380V, 11.5 Nm, 3000 Rpm
0 reviews • Write a review
from
$991.53
Ex Tax: $991.53
  • Stock: In Stock
  • Model: ATO130SY-M11530HS1
  • Weight: 1.00
  • SKU: ATO130SY-M11530HS1

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy a 3600W servo motor with water cooling online. It uses water as a cooling medium to control the heat generated during operation, equipped with rated voltage 380V, rated current 11A, rated torque 11.5 N.m, and rated speed 3000 rpm, factory price and high performance.

Specifications

  • Model: RDDLZ130SY-M11530HS1
  • Rated Power: 3.6kW
  • Rated Voltage: 380V
  • Rated Current: 11A
  • Rated Torque: 11.5 N.m
  • Maximum Torque: 23 N.m
  • Rated Speed: 3000 rpm
  • Maximum Speed: 5000 rpm
  • Rotor Inertia: 2.3X10-3 kg.m2
  • Weight: 9.6kg
  • Length: 199mm

Dimension (Unit: mm)

Winding Wiring

Winding LeadUVWPE
(Aviation Plug) Socket Number2341


Encoder Wiring

Signal DefinitionE-E+SD-GNDSD+VccPE
Socket Number2345671

Tips: What is a water-cooled servo motor used for?

  • High-Power Applications: Water-cooled servo motors are particularly suitable for environments where high power and torque are required in a compact size, such as in heavy-duty industrial machinery, robotics, and automotive manufacturing.
  • Precision Control: They are often used in precision engineering applications, including CNC machines, injection molding, and packaging systems. The precise control of motion and force provided by servo motors is essential in these settings to ensure accuracy and repeatability.
  • Thermal Management: The water-cooling system effectively dissipates the heat generated during operation, allowing the motor to operate continuously at high power levels without overheating. This feature is crucial in preventing thermal degradation, extending the motor's lifespan, and reducing maintenance needs.
  • Efficiency and Compactness: By maintaining lower operating temperatures, water-cooled servo motors can deliver higher efficiency and more consistent performance compared to air-cooled counterparts. Their compact design also makes them ideal for applications with space constraints.
