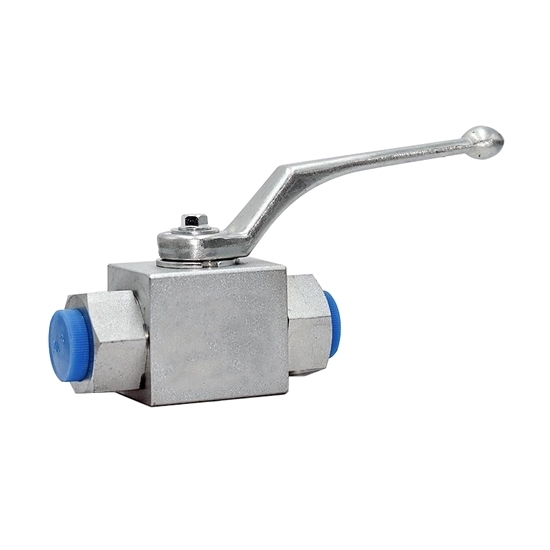

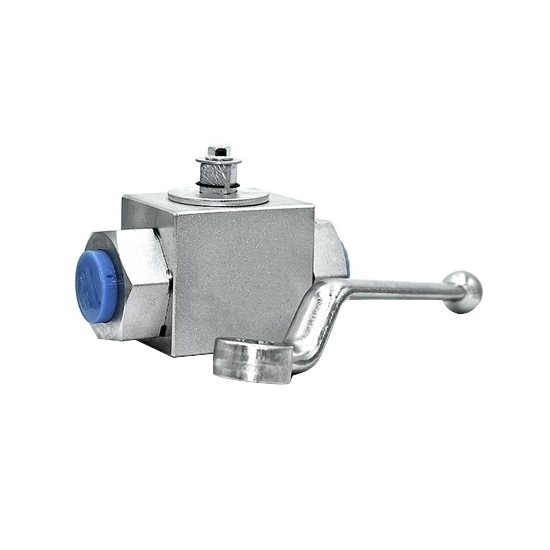

3/4" Hydraulic High Pressure Ball Valve, 2 Way

0 reviews • Write a review

from

$84.19

Ex Tax: $84.19

Stock: In Stock
Model: RDDLZ-HPBV-DN20
Weight: 1.00
SKU: RDDLZ-HPBV-DN20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

G3/4 inch hydraulic high-pressure ball valve is a type of valve designed for use in hydraulic systems where high-pressure fluids are involved. These 2 way ball valves are commonly used to control the flow of hydraulic fluids, such as oil, in various industrial and heavy-duty applications. They are specifically designed to handle high-pressure conditions and provide reliable fluid control.

Specification

Model: RDDLZ-KHB-G3/4
Type: 2 Way High Pressure Ball Valve
Drive Mode: Hydraulic
Port Size: G3/4 inch (DN20)
Nominal Pressure: 315bar
Applicable Temperature: -29℃~120℃
Applicable Media: Water, Oil
Body Material: Carbon Steel

Dimension (Unit: mm)

DN	LW	d1	i	L	L1	B	H	h1	h2	h3	SW1	SW2
20	20	G3/4"	18	95	60	48	75	24	57	12	14	41

Application

Tips: What is a hydraulic ball valve?

A hydraulic ball valve is a type of control valve designed for regulating the flow of fluids, typically in hydraulic systems. It consists of a spherical ball with a hole or bore through the center, which can be rotated within the valve body to control the fluid flow. When the ball is positioned to align with the flow, the valve is open, allowing fluid to pass through. Conversely, when the ball is rotated 90 degrees to block the flow path, the valve is closed.

Hydraulic ball valves are popular in hydraulic applications due to their durability, reliability, and ability to provide precise control over fluid flow. They are often used in high-pressure systems where the efficient regulation of hydraulic fluid is critical. These valves are available in various materials and configurations to suit different operational requirements, making them a versatile choice for a wide range of industrial and hydraulic applications.
