Water pressure reducing valv pipe size 3/4 inch, solid brass body with female hose connection inlet and male hose connection outlet, lead-free installation requirements.

Specification

• Model: RDDLZ-WPR-DN20
• Drive Mode: Hydraulic control
• Size: 3/4 Inch
• Nominal pressure: 1.6 Mpa
• Structure Type: Adjustable
• Mode of Action: Double acting
• Nominal diameter: DN 20mm
• Type (Channel Location): Straight through
• Function: Decompression type
• Connection Method: Thread
• Lining Material: Rubber
• Flow Direction: One way
• Working Pressure: 0.6 Mpa
• Operating Temperature: -20℃~+80℃

• Weight: 3.69kg

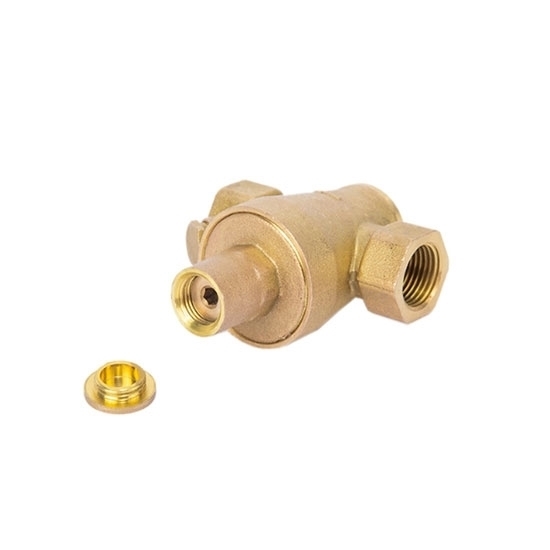

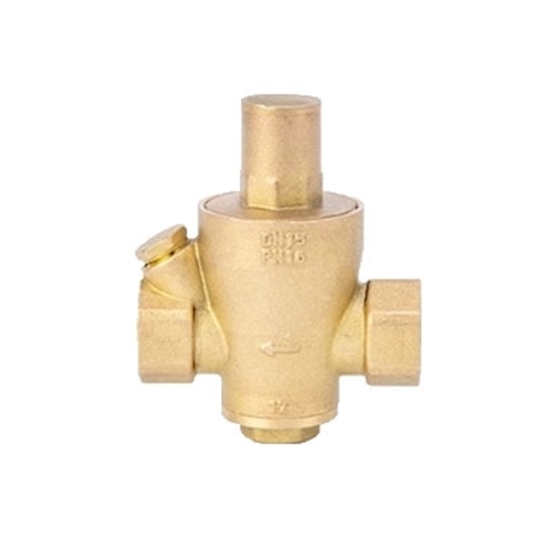

3/4 Inch Water Pressure Regulator Detail

Water Pressure Regulator Applications

Tips: What is a pilot operated pressure reducing valve?

The pilot-operated pressure reducing valve changes the flow rate and kinetic energy of the fluid in the pipeline system by changing the throttling area, and after different degrees of pressure loss, the purpose of reducing the pressure inside the pipeline is achieved. Through careful control and adjustment, the internal pressure of the valve can be reduced. The fluctuation of the valve and the spring force reach a balance, and finally the pressure after the valve in the pipeline is kept constant within a certain error range.

Pilot operated pressure reducing valves use hydraulic operating principles to achieve control. As a component for adjusting and throttling local pressure changes, the pilot-operated pressure reducing valve reduces the inlet pressure to a set outlet pressure range by adjusting the inlet pressure, and then automatically keeps the outlet pressure stable by virtue of the energy of the medium itself.
