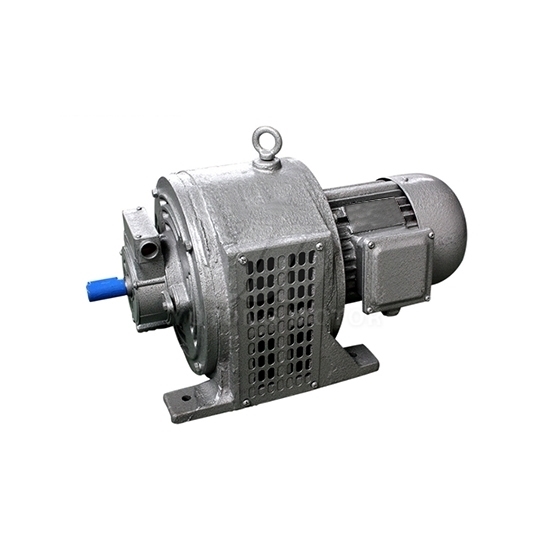

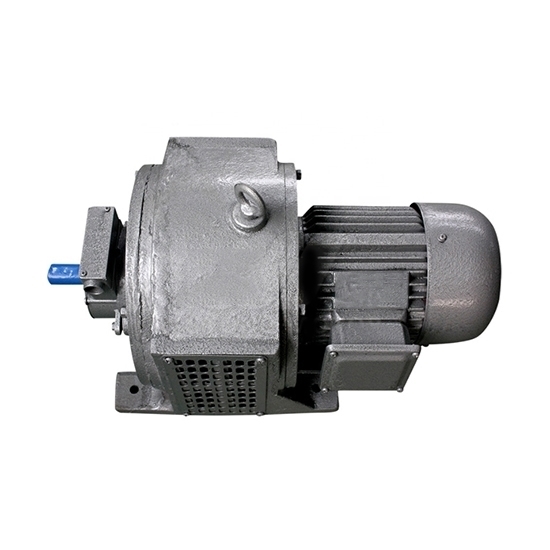

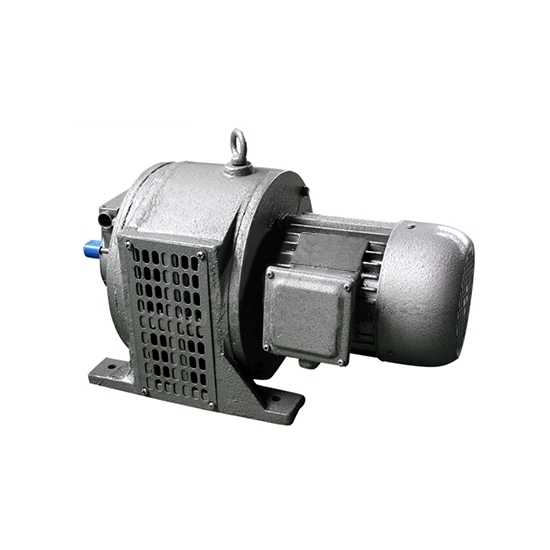

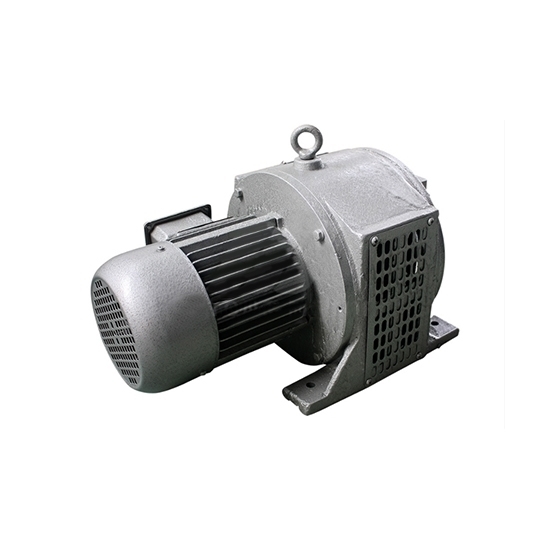

2hp (1.5kW) 3-Phase Asynchronous Motor With Clutch

0 reviews • Write a review

from

$1,621.18

Ex Tax: $1,621.18

Stock: In Stock
Model: RDDLZ-AMWC-1500W
Weight: 1.00
SKU: RDDLZ-AMWC-1500W

Available Options

With Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality asynchronous motor with clutch features 380V, rated power 1500 watt, 50Hz frequency, it offers high speed and long span life time.

2hp (1.5kW) 3 Phase Asynchronous Motor with Clutch Specification

Model	RDDLZ-YCT132-4B
Capacity	1.5kW
Rated Torque	9.72Nm
Speed adjustable Range	1250-125r/min
Speed Changing Rate	3%
Rated Voltage	380V
Installation	B3
Frequency	50Hz
Phase	3 phase
Certification	CE, CCC, IS9001, IS2008
IP Grade	IP21
Efficiency	IE1/IE2/IE3
Frame	Cast Iron or aluminum
Weight	85kg
Ambient temperature	-15℃~40℃
Altitude	not exceeding 1000 Meters
Duty	Continuous running
Insulation Grade	B
Warranty	1 year

2hp (1.5kW) 3 Phase Asynchronous Motor with Clutch Dimensions

Model	YCT132-4B
Mounting Dimension & Tolerance (mm)	A	Basic Size	216
	A/2	Basic Size	108
	WB	Basic Size	241
	WC	Basic Size	40
	WC	Limit Size	±1.5
	D	Basic Size	24
	D	Limit Tolerance	+0.009 -0.004
	E	Basic Size	50
	E	Limit Tolerance	±0.31
	F	Basic Size	8
	F	Limit Tolerance	-0.038
	G	Basic Size	20
	G	Limit Tolerance	-0.2
	H	Basic Size	132
	H	Limit Tolerance	-0.5
	K	Basic Size	12
		Limit Tolerance	±0.43
		Position Tolerance	Φ 1.0 Ⓜ
Mounting Dimension & Tolerance (mm)	AB	285
	AC	310
	AD	165
	HD	330
	L	560

Details

Tips: The Basic Characteristics of 2hp (1.5kW) 3-Phase Asynchronous Motor with Clutch.

The basic characteristics of 1.5kW asynchronous motor are that the rotor winding does not need to be connected to other power sources, and its stator current is taken directly from the AC power system; compared with other motors, the structure of asynchronous motor is simple, easy to manufacture, use and maintain, with high operational reliability and low cost. Take three-phase asynchronous motor with clutch for example, compared with DC motor of the same power and speed, the weight of the former is only one-half of the latter, and the cost is only one-third.

Asynchronous motor with clutch is also easy to derive a variety of series products according to the requirements of different environmental conditions. It also has near-constant speed load characteristics, can meet the requirements of most industrial and agricultural production machinery dragging. Its limitation is that its speed and its rotating magnetic field synchronous speed has a fixed rate of difference (see asynchronous motor), and therefore poor speed regulation performance, in the requirement of a wide range of smooth speed regulation of the use of occasions (such as transmission mills, winches, large machine tools, etc.), not as economical and convenient as DC motors. In addition, asynchronous motor operation, from the power system to draw reactive power to excitation, which will lead to the power factor of the power system becomes bad.

Due to the large production volume and wide use of asynchronous motor, it is required to have a wide range of varieties and specifications to match with various machines. Therefore, the design and production of asynchronous motor should pay special attention to standardization, serialization and generalization. In all kinds of series products, the largest output, the most widely used three-phase asynchronous motor series for the basic series; In addition, there are a number of derivative series (on the basis of the basic series to make some changes in the derived series), special series (designed for special needs with a special structure of the series).
