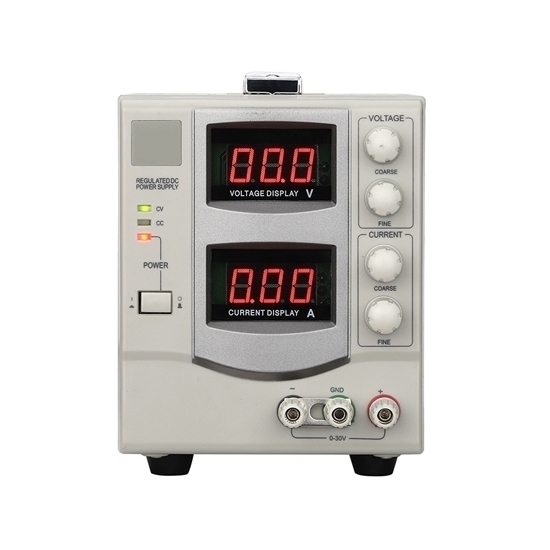

2A 120V 240W Variable Linear DC Power Supply

0 reviews • Write a review

from

$314.19

Ex Tax: $314.19

Stock: In Stock
Model: RDDLZ-DCPS1202
Weight: 1.00
SKU: RDDLZ-DCPS1202

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 amp 120 volt adjustable linear DC power supplies often incorporate digital control interfaces, facilitating precise adjustments with user-friendly interfaces. Users can effortlessly set desired voltage levels and control amperage with accuracy, granting flexibility in powering diverse circuits or components.

Specification

Model	RDDLZ-JK1202D
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-120V
Output Current Range	0-2A
Output Power	240W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	10mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-1+8mV
Line Regulation (CV)	1×10^-1+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-1+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	290 (L) x 130 (W) x 165 (H) mm
Weight	6.5kg

Detail

Tips: Can I use a variable linear DC power supply for electroplating applications?

Using a variable linear DC power supply for electroplating applications is feasible, but it has limitations. Electroplating typically requires a stable and controlled DC voltage to ensure consistent deposition of metal ions onto the substrate. While a linear power supply can provide a steady output, it may face challenges in terms of precision and efficiency compared to specialized electroplating power sources. Electroplating often demands specific current and voltage profiles for different stages of the process, which might be better addressed by dedicated electroplating power supplies designed to handle the dynamic requirements of the application. Additionally, linear power supplies may generate more heat and be less energy-efficient compared to other options. Consider consulting with experts and ensuring that the power supply can meet the specific demands of your electroplating process before use.
